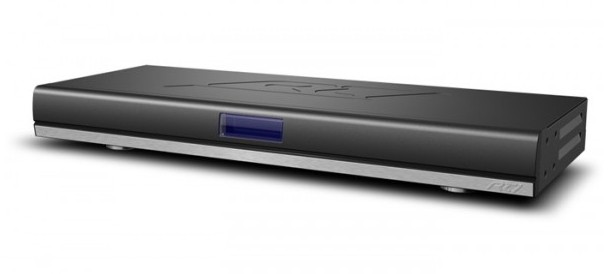

RTI - XP-8v Remote Control Processor
- Availability:
- Call to Buy
- Categories:
- Control
- Sub-categories:
- Remote Controls
- Brand:
- RTI
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Related Products (View more related products)
-
The RTiPanel offers the same intuitive control experience RTI remote controls offer, running on the Apple iPad, iPod touch and iPhone. -
RTI - XP-6s Remote Control Processor
View product for more information... learn more.$1,999(per each) -
RTI - XP-3 Remote Control Processor
View product for more information... learn more.$1,399(per each) -
IsoTek - EVO3 SEQUEL POWER CABLE 2 metre
EVO3 Sequel power cable offers increased performance over IsoTek's multi-award winning entry level EVO3 Premier, by featuring optimised conductor strand geometry and active shielding.$599(per each)
Product Categories
Product Details
- Powerful 532MHz i.MX CPU.
- 128MB of non-volatile Flash memory.
- Includes 4GB SD Flash memory card.
- Front panel controls/display (11 Buttons for front panel control).
- Eight programmable relays can be contact closure or voltage triggers.
- Eight two-way RS-232 ports.
- Eight sense inputs can trigger events based on contact closure or voltage.
- Eight multi-purpose I/O ports.
- Multi-purpose I/O ports are compatible with industry standard IR emitters, blasters, and repeater systems.
- Multi-purpose I/O ports support all optional RTI power sensing and communications modules.
- All output ports incorporate both short-circuit and overload protection.
- Variable IR output on all ports.
- Programmed using the Integration Designer® Software.
- Non-volatile Flash memory stores your system configuration even when power is not present.
- Field upgradable firmware.
- USB and Ethernet programming.
- Input for connection of both 433MHz and 2.4GHz Zigbee® RF modules.
- Astronomical clock built in.
- Rack mountable or free standing.
XP-8s Control Processor
The XP-8s is a high-end remote control processor for automating the operation of electronic systems such as A/V, lighting, security and Heating / Air Conditioning in homes and office buildings. The second generation of the popular XP-8 advanced control processor, the accelerated XP-8s kicks control into high-gear with even more processing power and additional memory. Increased performance combined with a real time/multitasking operating system, tremendously expandable and compatibility with any RTI controller or app, make the XP-8s the perfect solution for large-scale and complex projects.
The XP-8s provides an unmatched value with it's powerful features and ease of programming, offering a level of control typically only found on more expensive processors. Ideal for large-scale and more advanced projects, the XP-8s offers an abundance of control interface options such as two-way RS-232, routable IR, Ethernet and relay control.

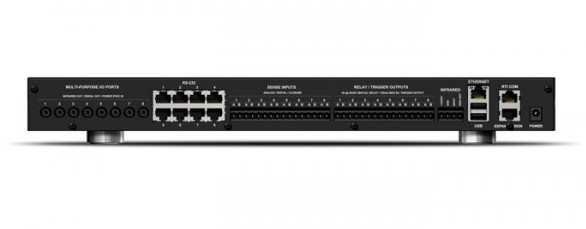

The XP-8s has eight multi-purpose I/O ports that accept standard IR emitters. For expanded integration capabilities, these multi-purpose ports also support optional modules for voltage sensing and RS-232 control. The XP-8s also features eight programmable relay input/outputs and eight sense inputs (voltage or contact closure). Eight two-way RS-232 ports and an Ethernet port provides even more advanced control with feedback.
Additionally, the XP-8s incorporates an astronomical clock, allowing for time based events and timers to trigger commands and macros. With all these interface and control options, the XP-8s provides a nearly unlimited arsenal of control capabilities.XP-8s incorporates an astronomical clock, allowing for time based events and timers to trigger commands and macros. With all these interface and control options, the XP-8s provides a nearly unlimited arsenal of control capabilities.| Power | +12VDC, 1.0A |
| Multi-Purpose Output Ports | Eight custom 3.5mm 4-conductor jacks Designed for RTI modules as well as industry-standard IR emitters |
| IR Output Drive | 100mA maximum (per port, adjustable) 200mA maximum (high IR output port) |
| Infrared Frequency Range | 15 KHz - 460 KHz |
| Infrared Input | Compatible with industry-standard repeaters and receivers |
| Relays | Eight, 3 amps @ 30VDC or 12V/100mA Trigger |
| Sense Inputs | Eight, Digital/Closure |
| RS232 Ports | Eight RJ45 Connections |
| Ethernet Port | 10/100Base-T |
| USB Ports | Two Host, One Programming |
| Expansion Port | RS-485/IR/PWR |
| Memory Expansion | SD/MM Card Slot, 4GB SD Card included |
| Display | High-contrast STS LCD |
| Display Size(HxD) | .7 in x 2.8 in (18mm x 60mm) 32h x 122w pixels |
| Backlights | Blue LED (Display/Keypad) |
| Mounting | Rack-mount or free standing |
| Dimensions (W x H x D) | 17 in (432mm) x 1.7 in (43mm) x 6.4 in (162mm) |
| Weight | 4 lbs (1814g) |
| Warranty | One Year (Parts & Labor) |
