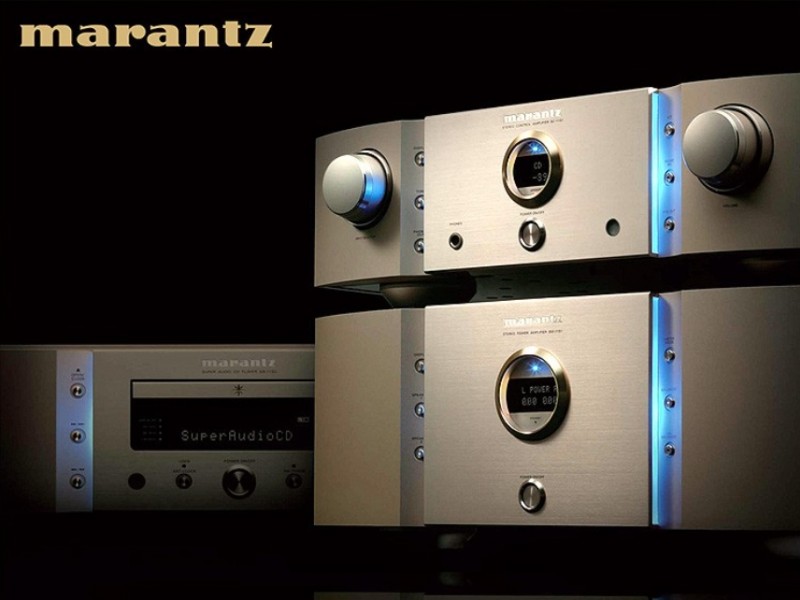

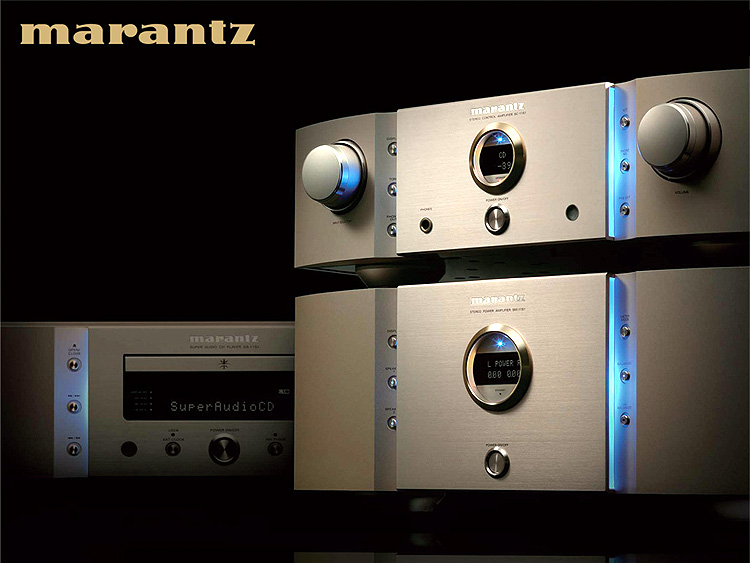

Marantz SA11S2, SC11S1 & SM11S1 Marantz electronics package

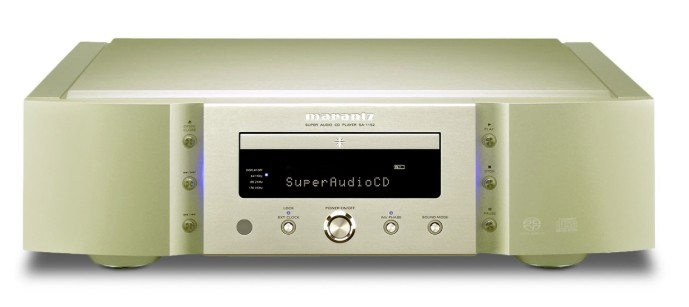

The SA11s2 Super Audio CD player launches new heights in stunning audio excellence. All sections of this integrated player are in perfect harmony and built in a fully symmetric layout. The SA11s2 will give you the most detailed and dynamic reproduction ever heard, ensured by our highly advanced digital filter techniques, which use Marantz's own filter characteristics. Because of this the SA11s2 SACD player has a unsurpassed rhythmic intensity, quality of dynamics and pace more usually associated with the recording studio. Playback of SACD has never been more exhilarating, even Audio CD will sound as never heard before making it a must for every audiophile and true music lovers

• SACD playback
• Marantz exclusive digital filters
• New high grade Toroidal transformer
• New heavy aluminium top cover for extra stability
• Current Feedback HDAM-SA2
• Digital phase inverter
• External clock input
• High grade balanced XLR and unbalanced RCA terminals

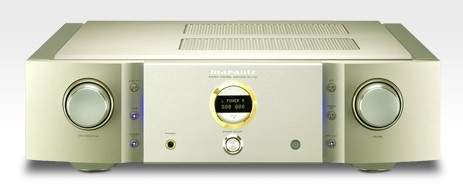

In developing the SC11S1 Marantz engineers took as much as possible from the Reference Series SC7S2. For example, the full balanced layout in-current feedback technology was applied, guaranteeing excellent signal integrity. Then the Wolfson high linear electric volume control and the new version of small signal amplifier HDAM ? specially developed by Marantz ? were added. The unit now incorporates the HDAM-SA2, which guarantees precision high-speed signal handling over a wide frequency range. It also uses high precision Melf resistors to minimise tolerances ? essential for audio integrity. While the high quality in-current feedback phono amplifier for the MM/MC system makes external phono amplifier obsolete. And for advanced systems the floating control bus allows bi-amp and multi-channel set-ups. It all adds up to a scintillating audio experience with crystal clear transparency

? Full balanced current feedback control amplifier

? Technologies derived from the Reference Series SC7S2

? Fast, accurate signal handling for up to 100 kHz and higher

? Digital high quality linear volume control with Wolfson WM8816

? New Toroidal transformer with shield case and very low impedance

? HDAM SA2: High speed amplifier module with new high precision Melf resistors

? Current feedback MM/MC phone EQ for best vinyl performance

? Current feedback headphone driver (full balance input signal)

? High speed line input buffers keeping the full integrity of the source signal

? Customised 'Blue Cap' film capacitors used in SC7S2 and MA9S2

? Wide range on connectivity including two times XLR

? Full balanced XLR and additional RCA pre out

? Floating Control Bus System for Bi-Amp or Multi channels set-up

? Heavy, 5 mm thick, copper plated aluminium top lid and aluminium die-cast feet

? Trigger out to remote control the SM11S1 on and off switching

? New aluminium top remote control with extended functionality

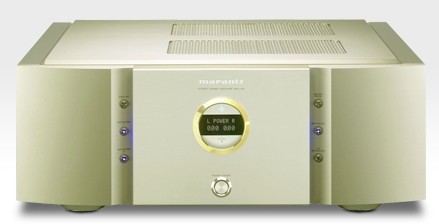

The new SM11S1 is powerful. Very powerful. That's because it takes as much as possible from the highly acclaimed Reference Series MA9S2. The result? A powerful, highly dynamic stereo main amplifier, offering an open, transparent, and precision sound.

As you would expect, this current feedback technique amplifier can easily handle demanding Loudspeakers. For extreme set-ups, the bridge mode (BTL mode) can convert the stereo amplifier SM11S1 to a 400 W mono amplifier. The two-stage circuit construction (voltage amplification first to increase audio signal, buffer amplification second to ensure high current delivery) guarantees an excellent signal to noise ratio and the full control of any speaker. Thanks to the adjustable gain factor the SM11S1 can also upgrade the PM11S1 integrated amplifier, creating an excellent bi-amp system set up. Switching on/off can be remote controlled via a DC trigger from SC11S1 or other sources. Prepare to be exhilarated to a scintillating audio experience with crystal clear transparency

? Stereo power amplifier in-current feedback technology

? Technologies derived from the Reference Series MA9S2

? Ultra stable power output of 2 x 100 Watts at 8 Ohms and 2 x 200 Watts at 4 Ohms rms

? In monaural mode ? Bridge Mode (BTL) ? up to 1 x 400 W at 8 Ohms

? Fast and accurate signal handling for signals up to 100 kHz and higher

? Audiophile 2-stage circuit concept with voltage and power buffer amplifier stages

? Instantaneous current delivery capability

? Gain factor selectable 17.5 dB / 23 dB / 29.5 dB ? can be used to upgrade PM11S1

? HDAM SA2: High speed amplifier module with new high precision Melf resistors

? High speed input buffers keeping the full integrity of the signal

? Customised ?Blue Cap" film capacitors used in SC7S2 and MA9S2

? Large Toroidal transformer with anti magnetic aluminium shield case

? Output level meter in low noise LCD technology ? 3 digit per channel

? Each one stereo balanced XLR and stereo unbalanced input

? Two pair low impedance WBT speaker terminals for bi-wiring

? Heavy, 5 mm thick, copper plated aluminium top lid and aluminium die-cast feet

? DC trigger for remote on/off switching
