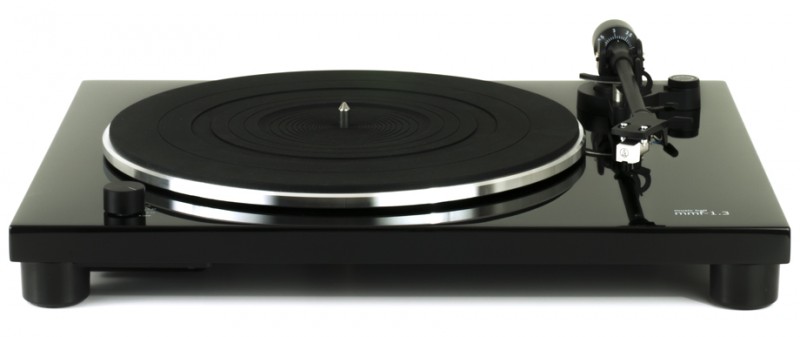

Music Hall MMF-1.3 turntable
MUSIC HALL'S NEW ENTRY-LEVEL TURNTABLE (More information)
- Availability:
- Discontinued
- Categories:
- Hi-Fi
- Sub-categories:
- Turntables
- Brand:
- Music Hall
- Delivery:
- FREE Delivery Australia Wide
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$599
(each)
FREE Delivery Australia Wide
This product is currently unavailable to order.
Related Products (View more related products)
Product Categories
Product Details
THE MUSIC HALL MMF-1.3 TURNTABLE IS A 3-SPEED, BELT DRIVEN AUDIOPHILE TURNTABLE WITH A BUILT-IN PHONO PREAMP AND A PRE-MOUNTED CARTRIDGE AT A BARGAIN PRICE
feature list
- belt drive
- electronic speed controlled motor
- 33 1/3, 45, and 78 rpm
- aluminium tonearm with
removable head-shell - piano black MDF plinth
- vibration-damping rubber platter mat

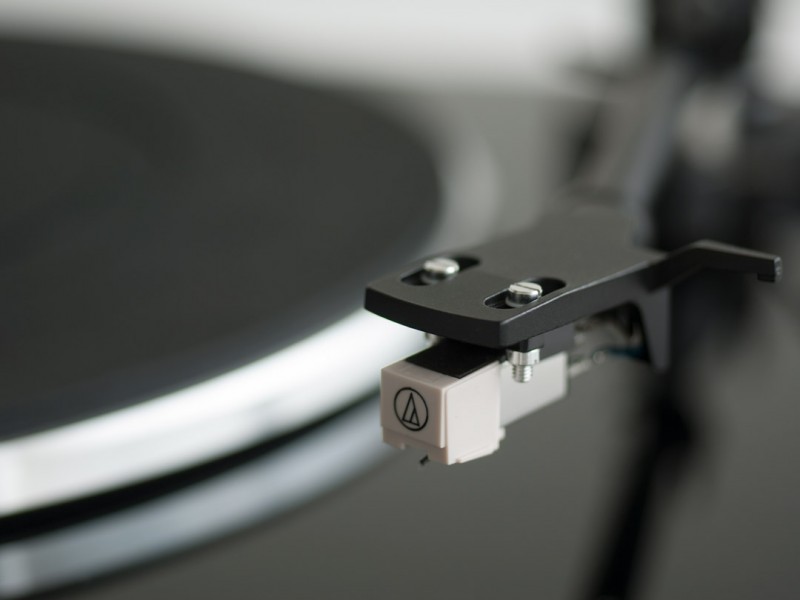

- Audio Technica AT3600L cartridge
- aluminium platter

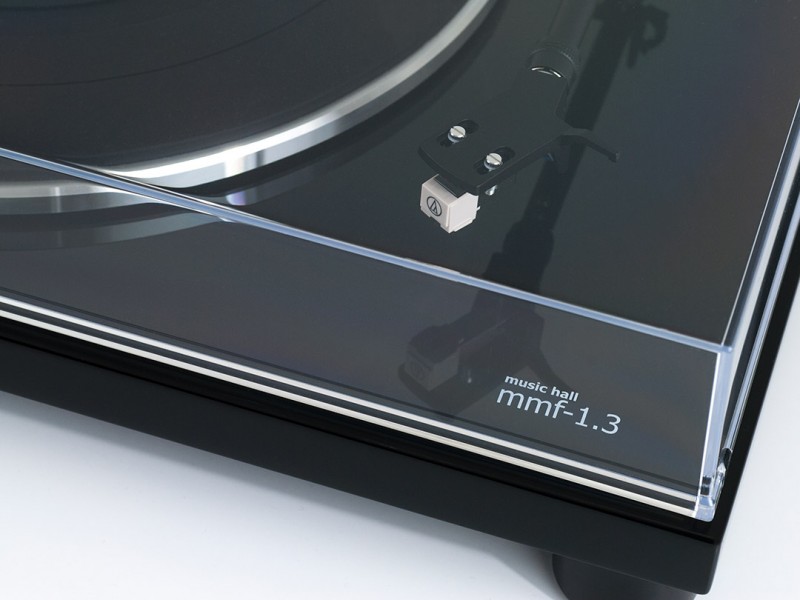

- dust cover
- built-in phono pre-amp

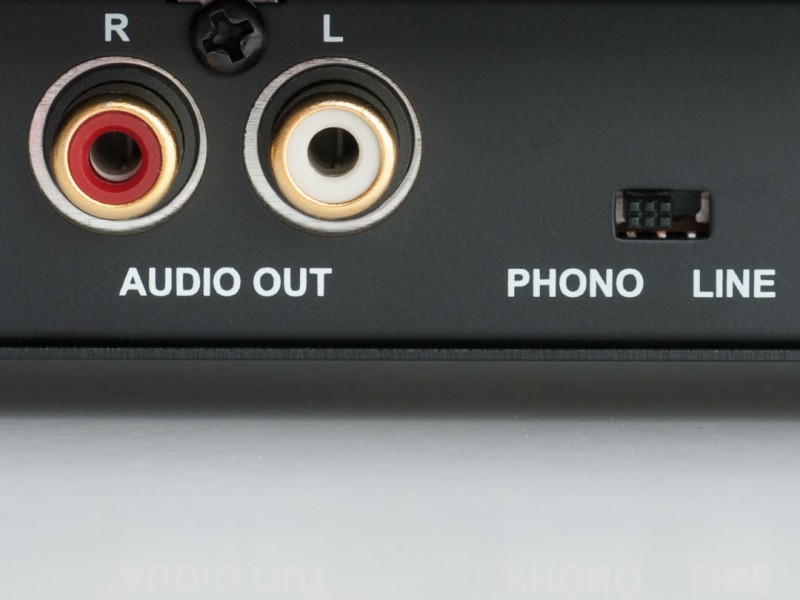

- removable RCA cables
- vibration damping feet
technical specifications
GENERAL SECTION
power supply | DC 12 V 2.0A Universal power supply |
consumption | 4W |
dimensions | 435(W) x 367(D) x 106(H) mm |
weight | 5 Kg |
TURNTABLE SECTION
type | 3-speed full manual |
motor | DC motor |
driving method | belt drive |
turntable platter | 296 mm diameter. aluminium die-cast |
speeds | 33 1/3, 45, and 78rpm |
wow and flutter | typical: less than 0.1% WTD at 3 KHz RMS (CD-4005) limit: Less than 0.15% WTD at 3 KHz RMS (CD-4005) |
S/N ratio | more than 62dB (DIN-B) (SS-4242) |
speed tolerance | 3000 Hz +/- 1%(CD-4005) |
CARTRIDGE SECTION
type | moving magnetic cartridge |
stylus | diamond stylus |
height of arm lifter | 7.5 mm (the distance between the record and the stylus when the lifter lever is pulled up) |
channel separation | within 2.5 dB at 1KHz (CD-4005) |
channel balance | within 2.5 dB at 1KHz (CD-4005) |
phono output level | 1.5~3.6 mV at 1KHz 5cm/sec (CD-4005) |
line output | 90-216 mV at 1KHz 5cm/sec (CD-4005) |
RIAA | 20Hz~20KHz: +1/-3 dB |
CARTRIDGE
cartridge | AT3600L |
output voltage | 2.5mV +/- 3dB at 1KHz 3.54cm/sec (AT6606A) |
channel separation | more than 18dB (AT6606A) |
channel balance | within 2dB at 1KHz (AT6606A) |
frequency response | 0 +/-3dB at 10KHz (AT6606A) (Value at 10KHz based on value at 1KHz) |
tracking force | 3.5 +/- 0.5 g |
TONEARM SECTION
type | dynamic balanced straight shaped w/soft damping control |
effective arm length | 221.5 mm |
overhang | 19 mm |
offset angle | 25.61 |
tracking error angle | 3 degree or less |
stylus pressure adjustment method | rotation movability |
arm lifter | oil damper type |
