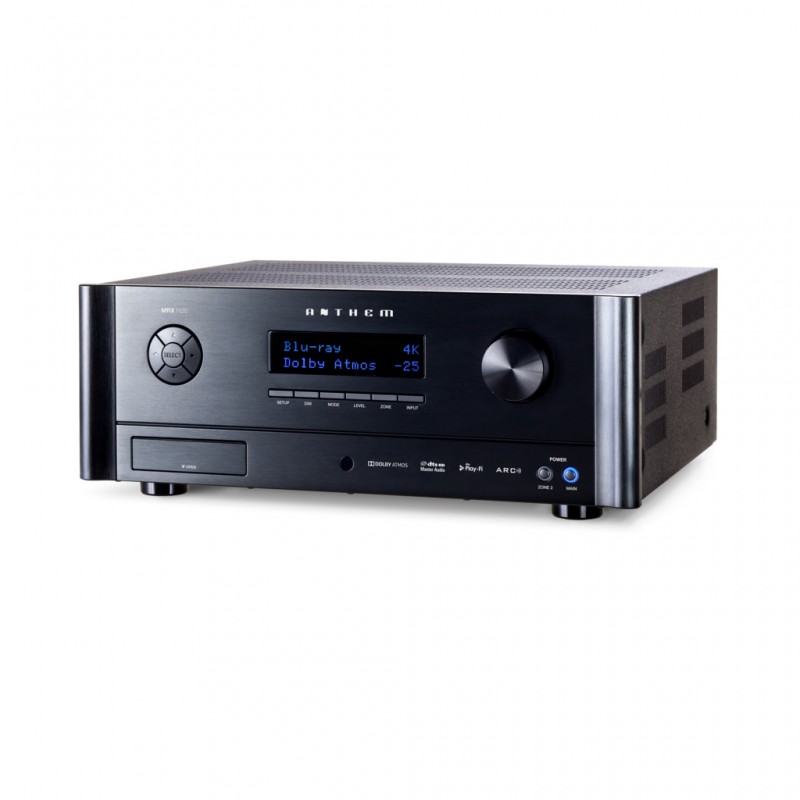

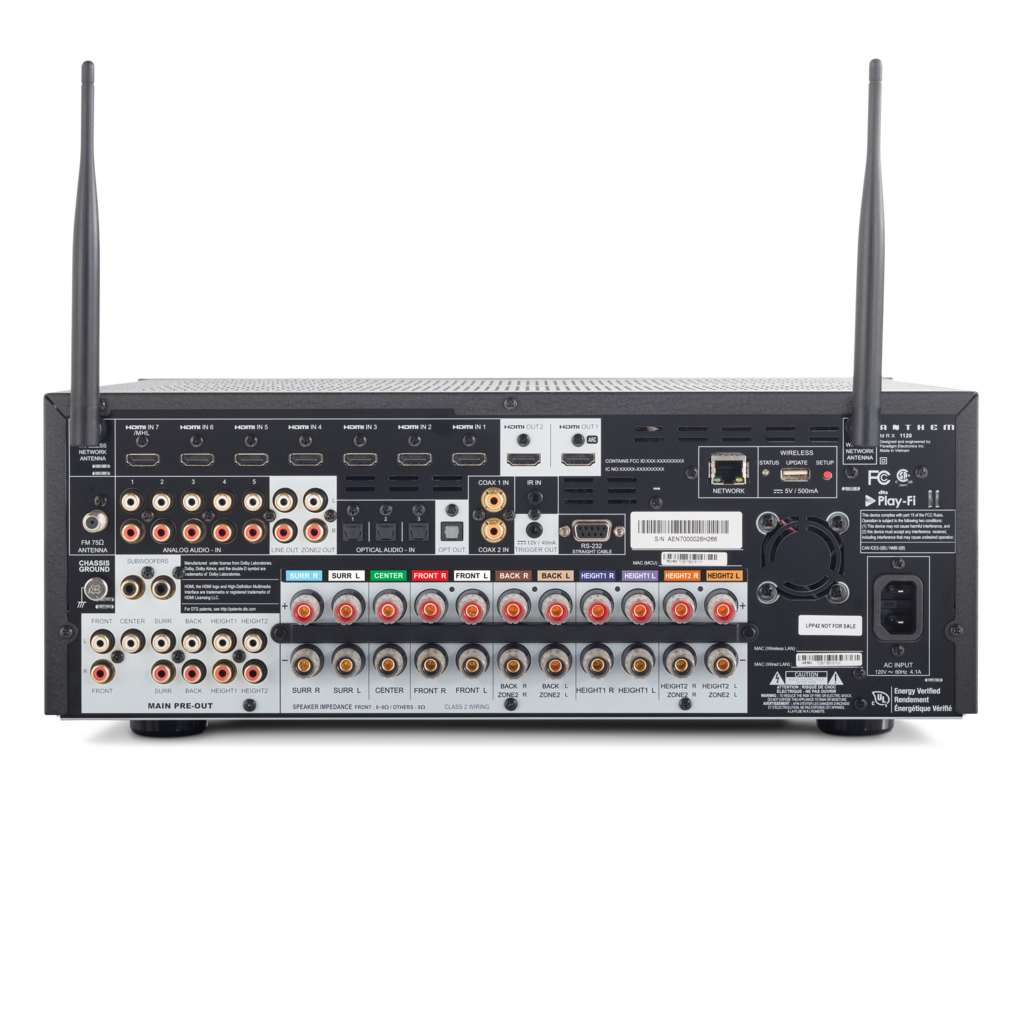

Anthem MRX-1120 Home Theatre Receiver
Separates-Quality Performance in a Gutsy, Feature-Rich AV Receiver. (More information)
- Availability:
- Call to Buy
- Categories:
- Home Cinema
- Sub-categories:
- AV Receivers
- Brand:
- Anthem
- Delivery:
- FREE Delivery Australia Wide
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Related Products (View more related products)
-
Anthem MRX-520 Home Theatre Receiver
Separates-Quality Performance in a Gutsy, Feature-Rich AV Receiver.$2,299(per each) -
Integra DRX-R1.3B 11.2 Network THX AV receiver
From the deepest depths to the purest highs, the DRX-7 stimulates every sense with hair-raising emotion. Nine-channel object-based movie audio unleashes with thrilling scale while richly detailed stereo fills your entertainment space and beyond via wireless... read more$6,195(per each) -
Yamaha CX-A5200 Aventage Home Theatre AV Pre-Amplifier
Experience the future of home cinema with the 11.2-channel CX-A5200 AVENTAGE pre-amplifier. Yamaha’s renowned CINEMA DSP HD3 combined with Dolby Atmos and DTS:X deliver an exhilarating home cinema experience.$4,299 -
Integra DRX-2.3B 7.2 Network AV Receiver
With next-generation app-based streaming, 6G video and object-based audio, as well as seamless control of housewide entertainment, the new Integra DRX-2 is ready for the future.$1,595(per each)
Product Categories
Product Details
Experience the breathtaking power and multi-channel flexibility of Anthem's NEW Third Generation MRX Series of AV Receivers.
Anthem's award-winning Third Generation MRX Series of high-end multi-channel A/V receivers are known the world over for their excellent sound quality, efficient power handling, and the ease with which they integrate into an entertainment system. The MRX Series is packed with exclusive audio innovations like Anthem Room Correction (ARC) Technology and Advanced Load Monitoring (ALM) Technology, 4K Pass-Through with fast HDMI switching and more.
Specifications
| PREAMPLIFIER | ||
| Maximum Output (<0.1% THD) | 4.2 Vrms, subwoofer channel 5.2 Vrms | |
| Frequency Response (2 Vrms output) | 10 Hz ? 31 kHz (+0, -0.25 dB) | |
| Frequency Response, Analog-Direct (2 Vrms output) | 10 Hz ? 48 kHz (+0, -0.25 dB) | |
| THD+N (2 Vrms output) | -95 dB | |
| S/N Ratio (2 Vrms output, IEC-A filter) | 110 dB | |
| PREAMPLIFIER + AMPLIFIER (1 W OUTPUT) | ||
| MRX 1120 / MRX 720 | -88 dB channels 1-5, -75 db back/height | |
| MRX 520 | -88 dB | |
| MAXIMUM CONTINUOUS OUTPUT (1% THD) | |||
| MRX 1120 | MRX 720 | MRX 520 | |
|---|---|---|---|
| Channels 1-5, Two Driven into 8 Ohms | 140 W | 140 W | 100 W |
| Channels 1-5, Two Driven into 6 Ohms | 170 W | 170 W | 130 W |
| Remaining Channels, Two Driven into 8 Ohms | 60 W | 60 W | n/a |
| Remaining Channels, Two Driven into 6 Ohms | 75 W | 75 W | n/a |
| POWER CONSUMPTION | |||
| MRX 1120 | MRX 720 | MRX 520 | |
|---|---|---|---|
| Typical Load | 570 W | 485 W | 365 W |
| Standby | 0.3 W | 0.3 W | 0.3 W |
| Standby IP Control Enabled | 4.7 W | 4.7 W | 2.4 W |
| Standby HDMI Bypass Enabled | 8.2 W | 8.2 W | 5.8 W |
| DIMENSIONS | ||
| Height | 6-1/2" (16.5 cm) | |
| Height with Rackmount Kit | 4U | |
| Width | 17-1/4" (43.9 cm) | |
| Depth (not including power cord) | 14-3/4" (37.5 cm) | |
| WEIGHT | ||
| MRX 1120 | 32 lb (14.5 kg) | |
| MRX 720 | 31 lb (14 kg) | |
| MRX 520 | 28.2 lb (12.8 kg) | |
| POWER REQUIREMENT | ||
| 120 V version: | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. | |
| 220-240 V version: | In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. | |
