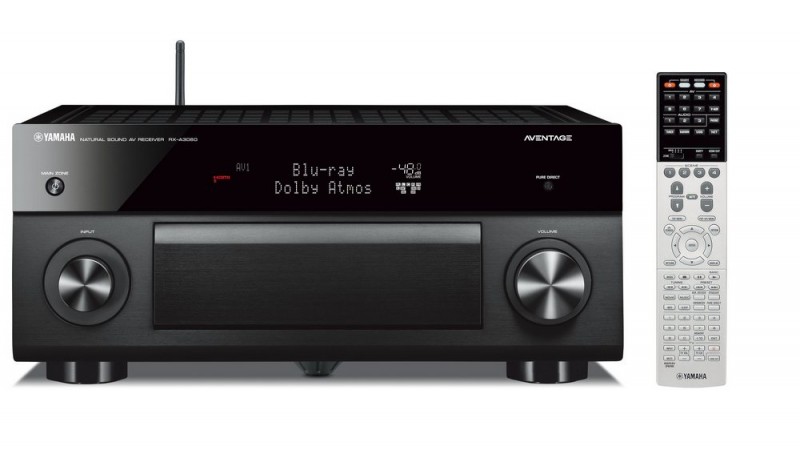

Yamaha RXA3060 Aventage home theatre receiver - DISCONTINUED NO LONGER AVAILABLE

• Dolby Atmos and DTS:X support
• Dolby Atmos and DTS-X playback with CINEMA DSP HD3
• AVENTAGE AV receivers: Designed to deliver the highest levels of audio performance
• ESS SABRE32? Ultra DACs for ultra-high sound quality
• Aluminium front panel offers visual and aural benefits
• Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
• Heavy legs to add more stability to the chassis
• H-shape cross member frame and rigid bottom frame / double bottom construction
• 9-Channel powerful surround sound
• --- 150 W per channel (8 ohms, 20 Hz-20 kHz, 0.06 % THD, 2-ch driven)
• --- 230 W per channel (8 ohms, 1 kHz, 10 % THD, 1-ch driven)
• --- 230 W per channel (4 ohms, 1 kHz, 0.9 % THD, 1-ch driven [European Model])
• MusicCast for audio enjoyment in every room
• Wi-Fi Built-in and Wireless Direct compatible for easy network
• Bluetooth for wireless music streaming and Compressed Music Enhancer for Bluetooth
• AirPlay, Napster*, Spotify* and Pandora* music streaming services
• *Music service availability varies by region
• DSD 2.8 MHz / 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple Lossless 96 kHz / 24-bit playback
• High-resolution Music Enhancer further heightens musicality from the original content
• Gapless playback compatibility allows play without interruption
• HDMI (8 in / 2 out) 4K Ultra HD Full Support with 4K/60p, 4:4:4, HDCP2.2 (7 in / 2 out), HDR Video and BT.2020 pass-through
• Heavy legs to add more stability to the chassis
• YPAO- R.S.C. sound optimisation with 3D, 64-bit precision EQ calculation and angle measurement
• YPAO Volume to ensure natural sounds even at low volume
• Zone Extra Bass for more powerful bass sound in another rooms (Zone 2 and 3)
• Zone Volume Equalizer for optimum sound balance in another rooms (Zone 2 and 3)
• Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
• Yamaha video processing optimises video content
• Advanced HDMI Zone Switching allows unprecedented AV switching to multiple zones
• Versatile Zone control such as Zone 2 / 3 / 4 on / off, Zone GUI and Party mode
• Detachable AC power cord for easier installation
• ECO mode operation for about 20% less power consumption

Features

MusicCast

MusicCast is a new revolution in network audio, use all your MusicCast products together or separately, it's completely up to you. Control it, all from one app, designed to be intuitive, quick and simple to use. Use a soundbar, a wireless speaker, an AV receiver, Hi-Fi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on. All new from Yamaha, the MusicCast system brings everything to everywhere for everyone.

MusicCast Expands Entertainment Possibilities

MusicCast employs a high performance wireless network to deliver music and audio enjoyment. It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home. It can also share the music from external devices such as a TV or Blu-ray Disc? player connected to the RX-A3060. Audio content from Bluetooth®-connected smartphones or tablets can also be streamed to MusicCast devices in multiple rooms.

Support for the Latest Surround Format, DTS:X?

DTS:X is the next generation object-based, multi-dimensional audio technology from DTS.
Unbound from channels, DTS:X conveys the fluid movement of sound to create an incredibly rich, realistic and immersive soundscape - in front of, behind, beside and above the audience - more accurately than ever before. The combination of DTS:X and Yamaha AV receivers will fill the room with multidimensional sound that makes you feel as if you are right in the middle of the story unfolding on the screen.

Support for the Latest Surround Format, Dolby Atmos®

Enter a new world of sound with Dolby Atmos. It transports you from an ordinary moment into an extraordinary experience with captivating, multidimensional sound that fills your room with amazing richness and depth. Music, people, and objects come alive in breathtaking detail and flow in precise choreography all around you, making you feel like you are truly there. The combination of Dolby Atmos and Yamaha AV receivers will fill the room with multidimensional sound that makes you feel as if you are right in the middle of the story unfolding on the screen.

Dolby Atmos and DTS-X Playback with CINEMA DSP HD3

This AV receiver supports Dolby Atmos and DTS-X playback with CINEMA DSP HD3, taking the surround sound experience to new heights. The revamped CINEMA DSP HD3 features new signal processing algorithms and three sets of high performance processors. This maximises theatre sound effects, accurately reproducing a new dimension of realism for a sound field with a rich sense of presence and no feeling of boundaries. You will experience a realistic cinema sound field with the sense of truly being immersed in the movie scene.

Speaker Layout Patterns Designed for Dolby Atmos Playback

Yamaha provide multiple placement patterns for presence speakers that support Dolby Atmos, creating a sound field that's ideal for your setup. Any layout can be appropriately reproduced, including the three-dimensional space of CINEMA DSP as well as Dolby Atmos.

Furthermore YPAO R.S.C. which optimises the listening environment and fundamental high quality audio design takes full advantage of the detailed spatial localisation capability of Dolby Atmos.
The combination of Dolby Atmos and Yamaha AV receivers will fill the room with multidimensional sound that makes you feel as if you are right in the middle of the story unfolding on the screen.

AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance

The AVENTAGE line of high-performance AV receivers is based on the audio design concept of providing a massive, full-bodied sound for movie sound effects and the accurate reproduction of music sources. By expertly harmonising traditional and advanced technologies, every factor that affects sound quality, from materials and parts to construction, layout, vibration damping (unique foot) and ?fine-tuning" the sound, is handled with no other thought than to achieve the best possible audio quality. As a result, every AVENTAGE model has the ability to reproduce the most subtle details of high-definition sound, so that listeners can enjoy a truly high-class sound studio experience at home.

Anti Resonance Technology Wedge Helps to Ensure that Vibrations Do Not Affect Sound Quality

The Anti Resonance Technology (A.R.T.) Wedge is a fifth foot in the centre of the unit. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers.

H-shaped Cross Member Frame

The interior of the receiver is reinforced with cross members in an H shape to provide an extremely rigid and stable frame. This reduces chassis vibration to virtually zero even during high volume output (seemingly minor vibrations can affect the sound), maintaining the highest audio quality.

Symmetrical Power Amplifier Layout

This is just one of the many design details that all combine to create a superior receiver. The interior of the unit has been precisely planned, circuit-routed and built so that the left and right channels are physically and electrically isolated. This naturally maximises channel separation, but also greatly improves signal to noise ratio and also helps to achieve a wide, open sound stage.

Aluminium Front Panel Offers Visual and Aural Benefits

All of the AVENTAGE components feature the same sleek, clean design, with an elegant aluminium front panel and silky touch volume / selector knobs. The aluminium front panel is used to effectively shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors and so on. This ensures optimum sonic performance in the widest range of installation environments.

Sound Tuning Achieved with High Quality Parts for Optimum Performance

Every single part in an AV receiver affects the sound quality. For AVENTAGE models, extra time is taken to find (or develop) the exact parts needed to achieve the highest performance possible. Sound technicians go through a testing process to, in effect, ?tune" the receiver's sound.

Ultra-high Performance DACs for Superior Sound Quality

An ultra-high performance ESS Technology 192 kHz / 32-bit ES9016 DAC produces an unsurpassed sound stage with up to 124 dB dynamic range, super low distortion and noise level. High-quality ESS ES9006 DACs power the presence channels. This AV receiver's sound reproduction is for the most discriminating of listeners.

Bluetooth-Compatible for Wireless Music Streaming

This AV receiver is equipped with Bluetooth functionality to let you enjoy easy wireless music playback from smartphones and other devices. Yamaha Compressed Music Enhancer is now optimised for Bluetooth audio transmission to ensure that your music will have vivid, lively sound quality even during wireless playback.

Bluetooth Output for Convenient Music Streaming

The RX-A3060 is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the RX-A3060 to Bluetooth headphones for private listening or to Bluetooth speakers.

4K Ultra HD Full Support with 4K/60p, HDCP2.2, HDR Video and BT.2020 Pass-through

This AV receiver completely supports with the latest HDMI® standards. Thanks to transmission of 4K video at 60 frames per second pass-through, you can fully enjoy the high definition video quality of 4K without degradation. It also adheres to the HDCP2.2 copyright protection standard for 4K video transmission. It also supports HDR (High Dynamic Range) Video which provide enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. Furthermore it supports wider colour gamut of BT.2020 pass-through.

Support for 21:9 Aspect Ratio

The 21:9 aspect ratio support is designed to show films recorded in the Cinema Scope format. When these films are viewed in the usual 16:9 ratio, you see black bars at the top and bottom of the screen; 21:9 eliminates these bars. By supporting 21:9 resolution, this model will be able to pass it through so that movies and games feel much more immersive.
*This feature is not supported with some PC monitors with specific IT specification design.

Wi-Fi Built-in and Wireless Direct Compatible for Easy Network

Wi-Fi Built-in capability allows wireless connection with your household wireless router, greatly simplifying system connections to enjoy network audio and music streaming services. If no Wi-Fi router is available, the unique Wireless Direct feature not only allows you to stream music directly from your smartphone or tablet via AV Controller App's Music Play feature, iOS's AirPlay® etc, but also control your receiver using the AV Controller app.

High-resolution Music Enhancer further Heightens Musicality from the Original Content

Enlarge

Hi-bit high-sampling extension up to 96 kHz / 24-bit can be applied to lossless 44.1 / 48 kHz content such as from a CD (2-channel PCM) or a FLAC file for further heightening of the musicality in the original content.

Network Functions

This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to your home network or internet to enjoy Internet Radio, Spotify*, Pandora®*, JUKE*, Napster®*, Rhapsody®*, SiriusXM* or music stored on a NAS and home PC. The AV Controller app (from iTunes® App Store or Google play) lets you control various functions from your iPod®, iPhone®, iPad® or Android phones / tablets.
*Music service availability varies by region.

AV Controller App for Easy, Convenient Operation

This AV receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Google Play to control power on / off and volume, select input and DSP modes and operate other functions from an iPhone or Android devices. You can also use in as many as 23* different languages and customise the interface by hiding unused icons and renaming functions. A tablet version is also available.
*As of spring 2014

DSP Parameter Adjustment for Easy and Detailed Setting

This AV receiver is equipped with a variety of sound programmes that utilise Yamaha's original DSP technology. They allow you to easily create sound fields like actual movie theatres or concert halls in your room and enjoy natural stereoscopic sound fields. Now you can use the AV Controller app to adjust DSP parameters to your preference to match the type of music / movie or the mood you want to achieve. There are two modes, Basic and Advanced, that you can choose according to the type of adjustments you want to do.

Easy Setup with Your Smartphone or Tablet

Use your smartphone or tablet together with the MusicCast CONTROLLER app to operate the speaker and change settings quickly and easily. The same Controller app functions as a remote control for all your MusicCast-compatible devices too.

AirPlay Allows Streaming Music to AV receiver

This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch®, iPhone® or iPad®, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theatre system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display.
*Some models don't support album art display.

Stream Millions of Songs with Spotify Connect

With the Spotify app on your smartphone, you've got instant access to millions of songs. And now you can stream those songs to your Yamaha system by using Spotify Connect. Just hit play to start streaming music. What's more, when you've been listening on your smartphone outside and come inside, the song immediately streams to your AVR?like magic, you enjoy uninterrupted music. You can also personalise playlists and receive phone calls while listening to music.

*The Spotify app and premium account are required. Visit spotify.com for more details.
Try Spotify Premium for free on your Yamaha Home Entertainment System for 30 days.

*Spotify service availability depends on regions.

http://spotify.com/yamaha

Extensive Audio Codec and Format Support

Enlarge

This AV receiver is compatible with many audio formats such as Dolby True HD and DTS-HD Master Audio. It is also compatible with high resolution audio codec such as DSD / AIFF / FLAC / WAV / Apple Lossless. You will enjoy excellent sound quality of various high resolution audio codec from USB and network content.

Gapless Playback Compatibility Allows Play without Interruption*

Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files. This provides playback with no interruptions, the way it was meant to be heard.
* Compatible with WAV, FLAC and ALAC file formats, and input from USB / PC / NAS.

Total Purity Concept for the Finest Sound Quality

Enlarge

The Total Purity Concept, which Yamaha has been cultivating for many years, encompasses high drive amp technology, high purity pre-amplification, anti-vibration technology and independent pure power supplies. All models have a fully discrete power amplifier that helps to minimise distortion. They also adopt independent pure power supplies, allowing dedicated power supplies for the analogue and digital circuitry to prevent digital noise from affecting analogue circuitry. The anti-vibration heatsinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

AV Setup Guide App Makes System Setup Easier

AV Setup Guide is an app that makes it much easier to perform receiver setup, and also assists you with cable connections between the AV receiver and source devices. It guides you through various settings such as speaker connections, TV and source device connections and power amp assignment. System illustrations and actual AV receiver images help you understand how to make the connections between devices, for much quicker system setup. It is available in multiple languages. Designed for iOS and Android tablet.

Yamaha Video Processing Optimises Video Content

Yamaha's high-end video projector engineering expertise has produced various advanced processing techniques that are applied to this AV receiver. These include edge adaptive deinterlacing to smooth out jaggy noise, motion adaptive deinterlacing to detect moving or still images for precise pixel-by-pixel processing and multi-cadence detection including 3-2 pull-down. Proper processing makes viewing enjoyment complete no matter what video source or content.

Advanced Multi-language GUI On-screen Display

Yamaha' s latest Graphical User Interface has a high resolution display with clear, easy-to-use menus and also includes a selectable Status Bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of eight languages: English, French, German, Spanish, Italian, Russian, Japanese and Chinese, and can be displayed over both normal and 3D pictures.

Extra-convenient SCENE PLUS

The SCENE PLUS function simplifies operation by providing one touch power-on along with selection of the desired source and the appropriate DSP programmes. SCENE PLUS offers a choice of 12 SCENE selections, four of which can be assigned to the second zone in a multi-zone system. SCENE PLUS can be selected from the front panel, remote control, GUI and even from the AV Controller app.

YPAO?-R.S.C. Sound Optimisation with 3D, 64-bit Precision EQ Calculation and Angle Measurement

YPAO-R.S.C. analyses the room acoustics and performs speaker angle measurements, then calibrates all of the audio parameters to achieve optimum sound at any listening position. It employs R.S.C. (Reflected Sound Control) to correct early reflections for studio-quality surround sound. YPAO 3D provides automatic sound parameter optimisation that maximises the 3D sound field effectiveness of CINEMA DSP HD3 as well as Dolby Atmos and DTS:X. 64-bit precision EQ calculation achieves the most natural room acoustics possible. Additionally, DSP Effect Normalisation adjusts the room acoustics according to the reflected sounds of each CINEMA DSP programme.

YPAO Volume to Ensure Natural Sounds Even at Low Volume

Human ears have less sensitivity to high and low frequencies, especially at lower volumes. YPAO Volume applies loudness EQ correction to automatically adjust high and low frequency levels as volume changes. Using the YPAO measurement results, EQ correction is optimised to your system settings and listening environment.

Virtual Presence Speaker and Virtual Surround Back Speaker

The Virtual Presence Speaker function makes full use of centre and surround speakers to create virtual presence speakers. Enjoy CINEMA DSP 3D Mode surround sound even in environments where speaker installation is limited. In addition, This model also features a Virtual Surround Back Speaker function. Even without using surround back speakers, you can experience more natural sound from behind you.

Virtual CINEMA FRONT Provides Virtual 7-channel Surround Sound with High Quality and Resolution

Even when it is impossible to install surround speakers behind the listening position, Virtual CINEMA DSP reproduces virtual 7-channel surround sound filled with realism, from only two front speakers. The Virtual CINEMA FRONT feature lets you place two surround speakers and a centre speaker at the front to enjoy virtual 7-channel surround sound with even higher quality and resolution, as well as superior rear virtual sound localisation. Adding two additional front presence speakers provides a three-dimensional sound field that gives you a feeling of its height and depth and of the vertical movement of the sound. You get more flexibility to arrange your speakers inside the room, along with easy enjoym
