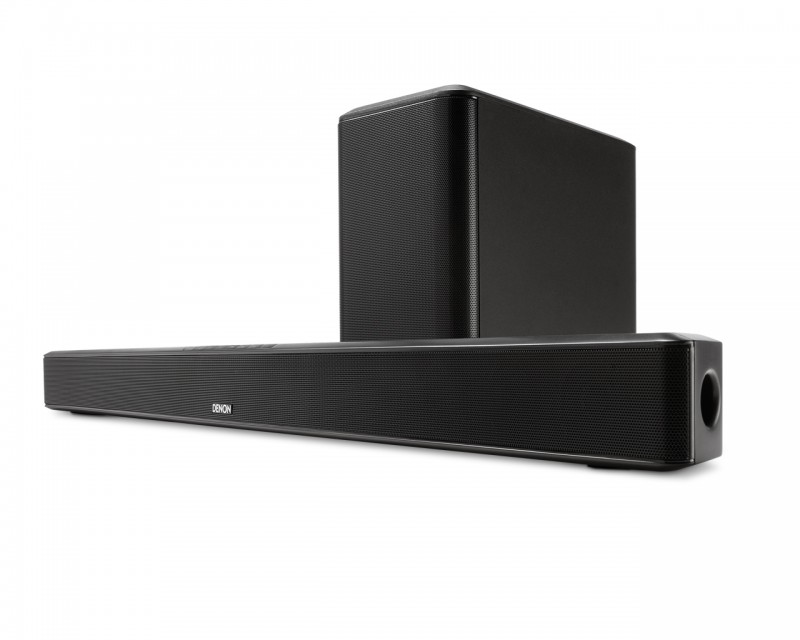

Denon DHTS514 Sound Bar system with Subwoofer

As high definition flat panel TV screens become ever thinner, manufacturers are increasingly challenged to provide comparable sound quality from ever smaller integral speakers. The Denon DHT-S514 state-of-the-art TV soundbar is the flat screen solution for big picture sound, with simple HDMI and Bluetooth wireless connectivity, and realistic surround sound capabilities and a wireless subwoofer, for fully enveloping TV and music sound. The DHT-S514 is a low visibility, hi-fidelity sound system that delivers powerful dynamic audio from the dual channel 2-way soundbar and wireless connected subwoofer. It instantaneously transforms your flat screen TV into a home entertainment center?for TV and movie viewing, gaming, or high quality music playback. Connectivity includes digital, analogue and wireless inputs, with aptX Bluetooth streaming for CD-quality wireless audio from Bluetooth equipped portable devices, smartphones and tablets. In addition, Denon Virtual Surround technology simulates full multi-channel home theatre surround sound with Dolby Digital and DTS decoding. Selectable listening modes include Night Mode for late night viewing enjoyment without disturbing other household members.

High Performance Sound
The DHT-S514 features a host of high performance components and replay technologies to deliver rich, dynamic, full-range, room enveloping TV sound and music. The soundbar features dual oval 51 x 127mm mid range drivers and 14mm tweeters, for crystal clear hi-fidelity audio reproduction. The powerful subwoofer effortlessly handles deep bass frequencies, right down to ground shaking cinema sound effects, from its dual 133mm driver woofers. Wireless operation means the sub can be positioned anywhere in the room, vertically or horizontally.

Simple TV Connectivity
Connection of the DHT-S514 to a TV is with the included HDMI cable. HDMI ARC (Audio Return Channel) functionality also enables sound from other audio-video devices connected with HDMI to the TV to be played via the DHT-S514; as well as audio from integrated DVB (satellite or cable) or digital terrestrial TV tuners. If a TV does not support HDMI ARC, connection via the optical or coaxial digital input enables sound from the TV and other audio sources connected to or integrated within it, to play through the DHT-S514.

Bluetooth Wireless Streaming
The Bluetooth wireless input enables audio to be streamed from compatible Bluetooth enabled devices such as smartphones, tablets or computers (with Bluetooth A2DP capability).

Multiple Digital and Analogue Inputs
A wide range of connectivity options, including optical and coaxial digital and analogue inputs, allows older model TVs to be connected to the DHT-S514.

Dolby Digital and DTS Decoding
Denon Virtual Surround mode delivers home cinema surround sound simulation with Dolby Digital and DTS decoding from Blu-ray, DVD, DVB and other surround encoded media. Advanced psychoacoustic algorithms realistically simulate a multi-channel home theatre surround sound speaker system.

Selectable Listening Modes & Night Mode
As well as Virtual Surround mode, three selectable custom sound modes enhance playback of Movie soundtracks or Music contents. Dialog mode delivers clear hi-fidelity sound with no acoustic enhancements. Additionally, Night Mode lets you enjoy hi-fidelity sound without sudden high jumps in volume, so you can watch TV late into the night without disturbing other household members.

Easy to Install, Setup and Use
An HDMI cable is included for quick and easy connection to a flat screen TV. Also included are an optical digital and stereo analogue audio cable. Setup is supported by a quick start guide and owner's manual. The DHT-S514 comes with its own remote control but also has the ability to learn commands from the TV remote control (or a larger 'master' system remote) to reduce the number of remote controls sitting around the room. In case the soundbar is placed in front of the TV, an IR Repeater is included to allow the TV remote control signal to pass through to the TV IR receiver.

NEW FEATURES

• 2-way Soundbar to fit 42" TV screens and up

• Powerful wireless Subwoofer

• HDMI connectivity (1 x in / 1 x out) with ARC (Audio Return Channel)

• Bluetooth wireless streaming with aptX

• Optical and Coaxial digital inputs as well as an analogue input

• Dolby Digital and DTS decoder built in

• 3 listening modes (Dialog, Music, Movie)

• Night Mode

STATE-OF-THE-ART DENON SOLUTIONS FOR MAXIMISING CONTENT QUALITY

• 175W total system power (peak)

• Rated power (4 ohms): 10W + 10W (sound bar), 49W (subwoofer)

• 2-way speaker system with 2 x 14mm tweeters and 2 x oval 51 x 127mm mid woofers

• Wireless subwoofer with strong 2 x 133mm woofers for deep bass attacks

• Dolby Digital and DTS decoding with Denon Virtual Surround

• Dynamic Bass Technology for powerful and precise bass reproduction

• Bluetooth with aptX streaming for CD like sound quality

EASE-OF-USE

• Learns your TV remote control commands

• Simple remote included

• HDMI in- and output

• Connects directly to your TV with one cable

• Auto input switching

• Bluetooth connectivity for wireless music streaming

• IR-Repeater to pass through TV remote control commands

• Two pair of feet to adjust height when place in front of a TV

• Built-in keyholes for direct wall mounting

• Quick Setup Guide for an easy start

FEATURES

• HDMI: ARC / CEC (1 x in / 1 x out)
• Digital input: Optical / Coaxial
• Analogue input (3.5mm mini jack)
• Simple one wire setup
• Bluetooh: A2DP / aptX
• Dolby Digital / DTS decording
• Listening mode: Dialog / Music / Movie
• Night mode

POWER OUTPUT

• Total system power: 175W (peak)
• Rated power (4 ohm): 10W + 10W (sound bar), 49W (subwoofer)

INSTALLATION

• Keyhole wall mount
• Tabletop placement
• Adjustable foot height (2x)

CONTROL

• Control buttons
• Remote Control
• TV remote learning function
• IR Repeater

GENERAL

• Auto standby
• Soundbar Dimensions (H x W x D): 79.8 x 1004 x 78.3 mm
• Height with foot 1 / foot 2: 98.8 mm / 110.8 mm
• Soundbar Weight: 2.3kg
• Subwoofer Dimensions (H x W x D): 313 x 171.5 x 346 mm
• Subwoofer Weight: 5.9 kg
