Monitor Audio Core W250-LCR In-Wall Speaker

This in-wall model can be used vertically or horizontally: the ideal aspect for centre channel applications in discreet home theatre systems. Features 2x 5" C-CAM bass driver and a pivoting 1-inch C-CAM gold dome tweeter. (More information)

 Need affordable installation?

Call to Buy
In-Ceiling Speakers
Monitor Audio
FREE Delivery Australia Wide
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $499 (each)

FREE Delivery Australia Wide

This product is each.

Order this product by calling us on 1300 721 480.

 Call to Buy

Vision Hifi is an Authorized Reseller. Order this product by calling us on 1300 721 480.

Related Products (View more related products)

Product Details

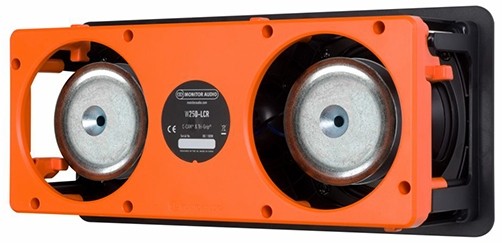

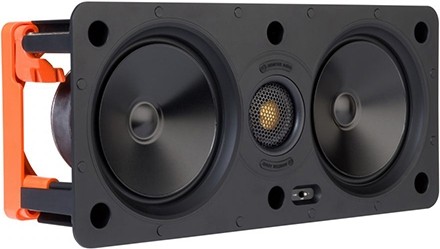

The 2-way W250-LCR in-wall model with 5-inch drivers features Monitor Audio's C-CAM cones coupled with a pivoting version of our C-CAM Gold Dome Tweeter.

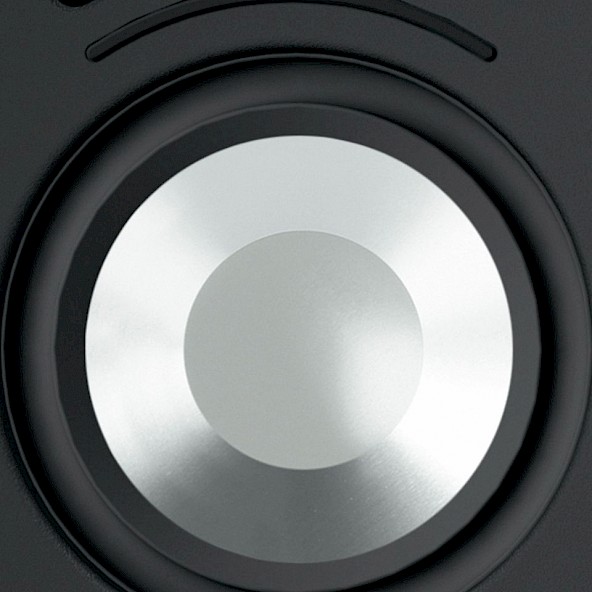

C-CAM Speaker Cones

Ceramic-Coated Aluminium/Magnesium is a material originally developed by the aerospace industry for jet engine components. Its properties are ideal for loudspeaker cones being extremely rigid, yet light enough to yield high overall efficiency. In manufacture, aluminium/magnesium alloy undergoes a three-stage stress-relieving process to remove surface deformation and molecular weakness. Once formed, the alloy cone is subjected to a high temperature anodic coating process in which a layer of pure ceramic alumina is depleted onto its surfaces to a depth of 50 microns, producing a completely rigid sandwich of alloy and heat-dissipating ceramic material.

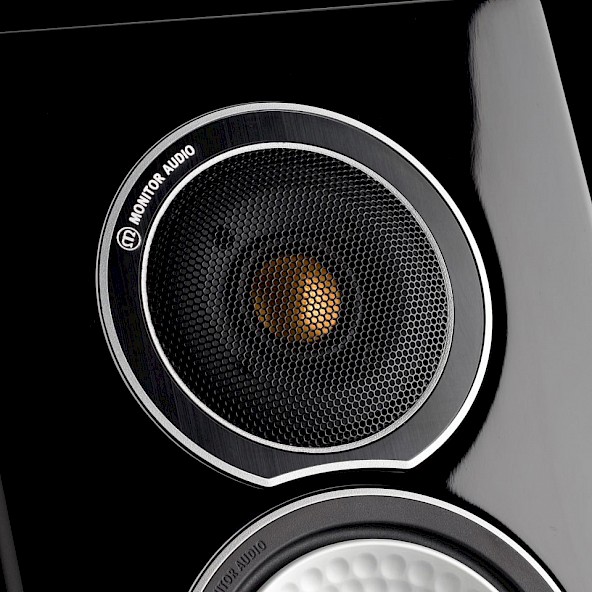

C-CAM Gold Dome Tweeter

The Gold Dome tweeter is formed from a ceramic-coated aluminium/magnesium alloy, gold anodised to a specific thickness for ideal stiffness and damping characteristics. Its new profile and surround geometry have been developed using advanced modelling tools, to provide the optimum qualities for accurate sound reproduction.


Frequency Response

60 Hz - 30 kHz

Impedance (Nominal)

8 Ohms

Sensitivity (1W@1M)

88 dB

Maximum SPL

108 dBA

Power Handling (RMS)

100 W

Recommended Amp Requirements

30 - 100 W

Drivers Unit Complement

2x 5" C-CAM cone bass driver
1x 1" C-CAM gold dome tweeter

Adjustment Controls

HF Level Switch (+3dB / 0dB / -3dB)

Overall Dimension (H x W x Dmm - when horizontal including grille)

177.4 x 385.2 x 105

Cut Out Dimension (H x Wmm when horizontal)

145 x 353 (allow internal cavity clearance of 197 x 400 for swing travel of Dogleg fixings)

Mounting Depth

100 mm

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic
(RoHS2 Compliant)

Pre-Construction Bracket

WB5LCR Pre Construction (Yellow)
