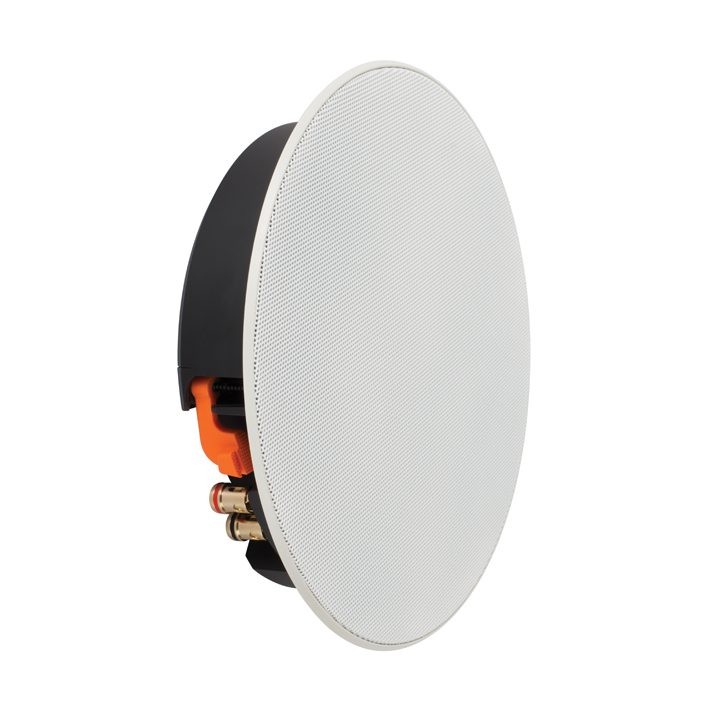

Monitor Audio CS-S230 super slim in-ceiling speaker

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50mm (2”) mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before. (More information)

 Need affordable installation?

Call to Buy
In-Ceiling Speakers
Monitor Audio
FREE Delivery Australia Wide
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $499 (each)

FREE Delivery Australia Wide

This product is each.

Order this product by calling us on 1300 721 480.

 Call to Buy

Vision Hifi is an Authorized Reseller. Order this product by calling us on 1300 721 480.

Related Products (View more related products)

Product Details

Between 50mm stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 61/2" driver, all from a super-stealthy flush-fitted profile.

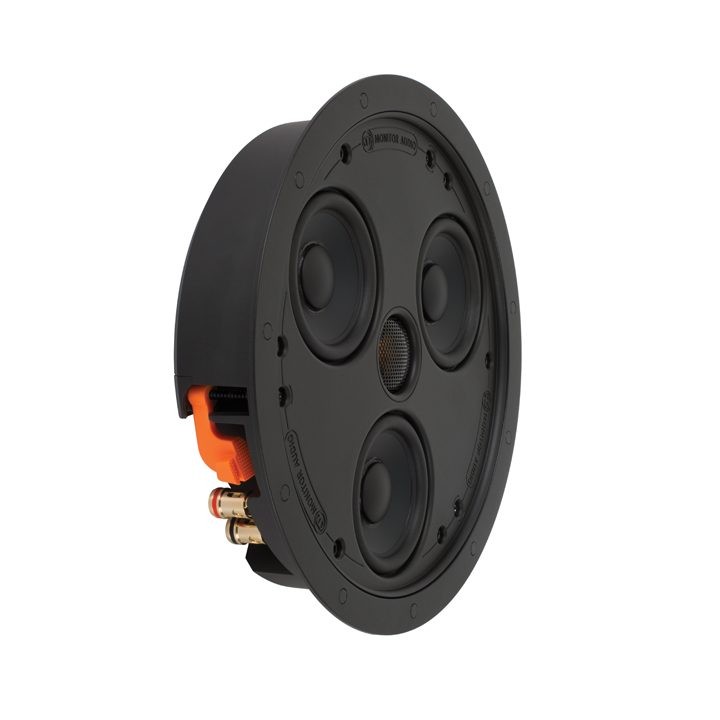

Monitor Audio CS S230 No Grill

Frequency Response (-6dB)

100Hz ? 30KHz sealed 'CP' (85Hz ? 30KHz ?open back)

Impedance (nominal)

8 Ohms

Sensitivity (1W @ 1M)


Maximum SPL


Power Handling (RMS)

40 Watts ? Full range (60 watts with crossover set to 100Hz @ 12dB/Octave)

Recommended Amp Requirements

10 - 60w

Drive Unit Complement

3 x 75mm C-CAM cone bass-mid drivers
1 x 19mm C-CAM Gold Dome tweeter

Crossover Recommendation - using an AVR

100Hz at a minimum of 12dB/Octave (24dB/Octave optimum)


Gold Plated Sprung push terminals ? for bare wire connection up to 4mm (2)

Overall Diameter (including grille)


Overall Depth (including grille)


Cut Out Diameter


Mounting Depth


Fixing Type

3 position Tri-Grip dog leg fixings

Construction Materials

ABS (UL94 rated, RoHS2 Compliant) ? Painted steel grille

Pre-Construction Bracket
