Stealth Acoustics B22 - Invisible Subwoofer
Invisible Subwoofer. The Stealth Acoustics model B22G is a compact, two-panel monaural subwoofer speaker system that becomes completely invisible after installation. (Requires Stealth Acoustics 255R Subwoofer Amplifier) (More information)
- Availability:
- Discontinued
- Categories:
- Speakers
- Sub-categories:
- Wall Mounted Speakers, Subwoofers, Invisible Speakers, In-Wall Speakers
- Brand:
- Stealth Acoustics
- Delivery:
- FREE Delivery Australia Wide
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$1,199
(each)
FREE Delivery Australia Wide
This product is currently unavailable to order.
Related Products (View more related products)
-
The Sonance Invisible Series is a custom installed product and we recommend them to be professionally installed by Vision Hifi or an approved installer. Sonance Invisible Series is the ultimate expression in Architectural Audio. Installed flush into the... read more -
Bowers & Wilkins HTM72 S3 Centre Speaker
...is the 700 Series compact centre-channel speaker featuring the Carbon Dome tweeter purpose built for the series.$1,699(per each) -
Focal JM Labs Aria 948 floor stand speaker (gloss black) - Currently Unavailable
Focal Aria 948: 3-way floor standing speaker - Available in Gloss Black or Prime Walnut Finish$7,900(per pair) -
Focal JM Labs Aria 936 floor stand speaker - Walnut (Vinyl Veneer) - Currently Unavailable
Focal Aria 936: 3-way floor standing speaker - Walnut finish$6,600(per pair)
Product Categories
Product Details

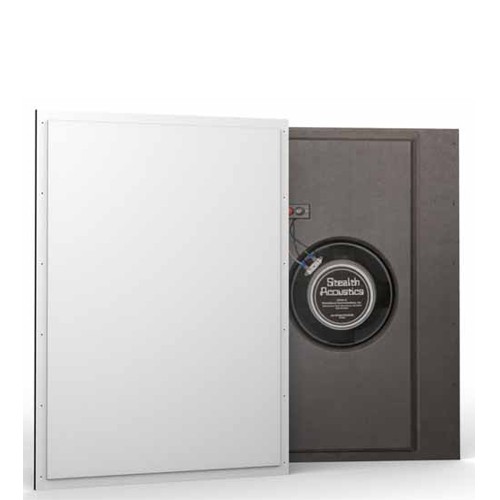

The Stealth Acoustics model B22G is a compact, two-panel monaural subwoofer speaker system that becomes completely invisible after installation. The subwoofer has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.
The B22G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
Ideal for any surround sound, foreground music or whole-house audio system that needs extra bass output, each B22G panel incorporates an acoustically coupled, high-quality, high-power 8" (203 mm) cone woofer. The panels work in pairs as a monaural output subwoofer. This two-panel system allows each panel to be placed wherever they perform best, free of visual concerns that may conflict with architectural features. B22G panels may be mounted separately or stacked to achieve desired acoustical results. For stereo subwoofers, four panels should be employed.
Using acoustic lever principals, the B22G provides exceptional bass output from 30Hz to 150Hz by trading off excursion for surface area to propagate bass waveforms. Each panel has 228 sq. in. (579 sq. cm) of active area for a total of 456 sq. in. (1158 sq. cm) for both panels.
Stealth Acoustics recommends the companion Model 255R 250-watt subwoofer amplifier/crossover as a matched amplifier for the B22G subwoofer speakers. Stealth Acoustics also offers a line of full-range speaker panels that when combined with the B22G, deliver a complete, totally invisible audio solution.
