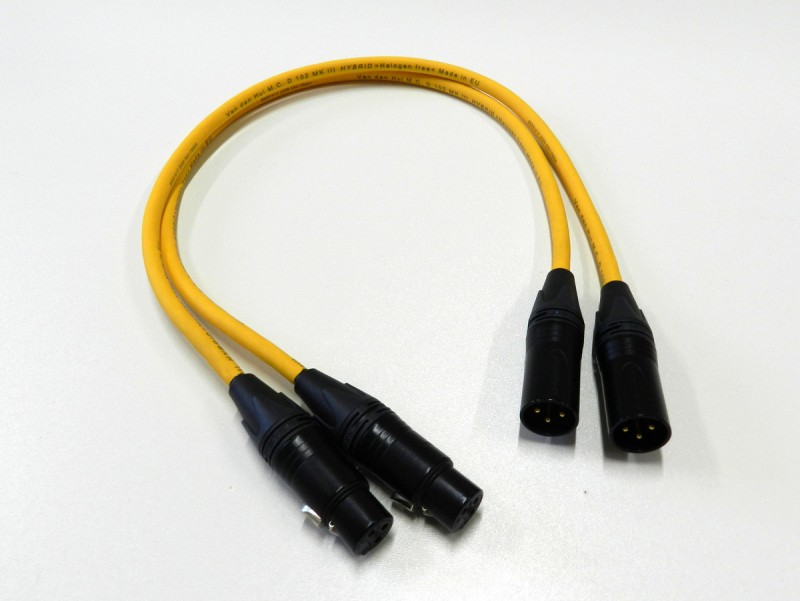

Van Den Hul D-102 MK111 XLR interlink cable 1 metre

Van Den Hul XLR cable (More information)

 Need affordable installation?

Availability:
Ship in 3-5 Business Days
Categories:
Cables
Sub-categories:
Interlink cables
Brand:
Van Den Hul
Delivery:
FREE Delivery Australia Wide
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $242 (per pair)
Normally
$269
Savings
$27

FREE Delivery Australia Wide

This product is per pair.
Normally:
$269
Save:
$27

Vision Hifi is an Authorized Reseller. Order this product online or call us on 1300 721 480.

Related Products (View more related products)

Product Details

THE D - 102 III HYBRID (HALOGEN FREE)

With our ever continuing technical improvements, it is logical to replace the already since 1982 available D - 102 Series (after 24 upgrades in the meantime) by an actual HYBRID version. Together with our Linear Structured Carbon technology, we have therefore applied some number of strands from our highly acclaimed 3T-technology into the new D-102 III Hybrid.

The D - 102 III HYBRID is a warm yellow-orange colored very flexible balanced interconnect with a 3 layer shielding.

  • The 2 centre conductors are made of 40 dense and very pure silver coated strands made of a very high grade Matched Crystal (MC) OFC. Over each centre conductor an extra Linear Structured Carbon (LSC) saturated layer is applied.
    This extra layer of LSC highly improves the quality of the signal transmission by performing electrical bridging on micro-scale and by converting the external magnetic field close to the conductors into an electrical signal again.
  • 4 strands of 3T have been applied into the design. 3T: True Transmission Technology offers a much higher resolution and detail compared to any other metal technology used so far.
  • The resistance of each centre conductor is 5.5 Ohm/100 meter.
  • The capacitance between the 2 internal conductors is a very low 37 pF/meter; so in balanced operation, even in rather high impedant circuitry, the overall losses and/or phase-shift remain very low.

In unbalanced operation the two internal conductors can simply be taken together with the shield acting as the signal return, though the better and preferred layout (which we apply) has the shield only connected to signal ground at the signal source side (marked by a ground-end marking sticker) and one of the internal conductors functions as signal return.

  • The insulation of the two centre conductors is made of polyethylene foam; one in white, the other in brown.
  • Surrounding the centre conductors, special treated artificial filler fibres provide a perfect protection against losses caused by increased humidity over a longer period.
  • The triple shielding consists of 2 helical layers with a total of 180 dense and very pure silver coated strands made of a very high grade of Matched Crystal (MC) OFC with an extra layer of LSC saturated tape in between.

The warm yellow-orange colored jacket is made of our HULLIFLEX .


THE D - 102 III HYBRID (HALOGEN FREE)
materialHybrid
product categorycar hifi - Interconnect
product categoryinterconnect - Balanced, Unbalanced, Analogue, Mid-range
cable typeTriple screened twin core (Balanced)
conductor materialHYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon saturated layer(s) / 3T: True Transmission Technology
design purposeBalanced audio interconnect
eff conductorCores: 0.31 mm / Cores: ~AWG 22 / Cores: 40; Screen: 180
external diameter7.25 mm.
jacket colorsYellow-orange
resistanceCores: 5.5 Ohm/100 m.; Screen: 0.62 Ohm/100 m.
capacitanceCore-core: 37 pF/m.
characteristic impedance~110 Ohm (in balanced configuration); Allows AES-EBU standard digital audio transmission
insulation

Cores: PE foam; Jacket: HULLIFLEX / 300 Vrms min.

connector types

Neutrik XLR.

standard sales units

Stereo pair packed with XLR (balanced) connectors in 1.0 and 1.5 m. lengths;

remarks

RCA connector terminated units are equipped with a ground-end marking sticker.
