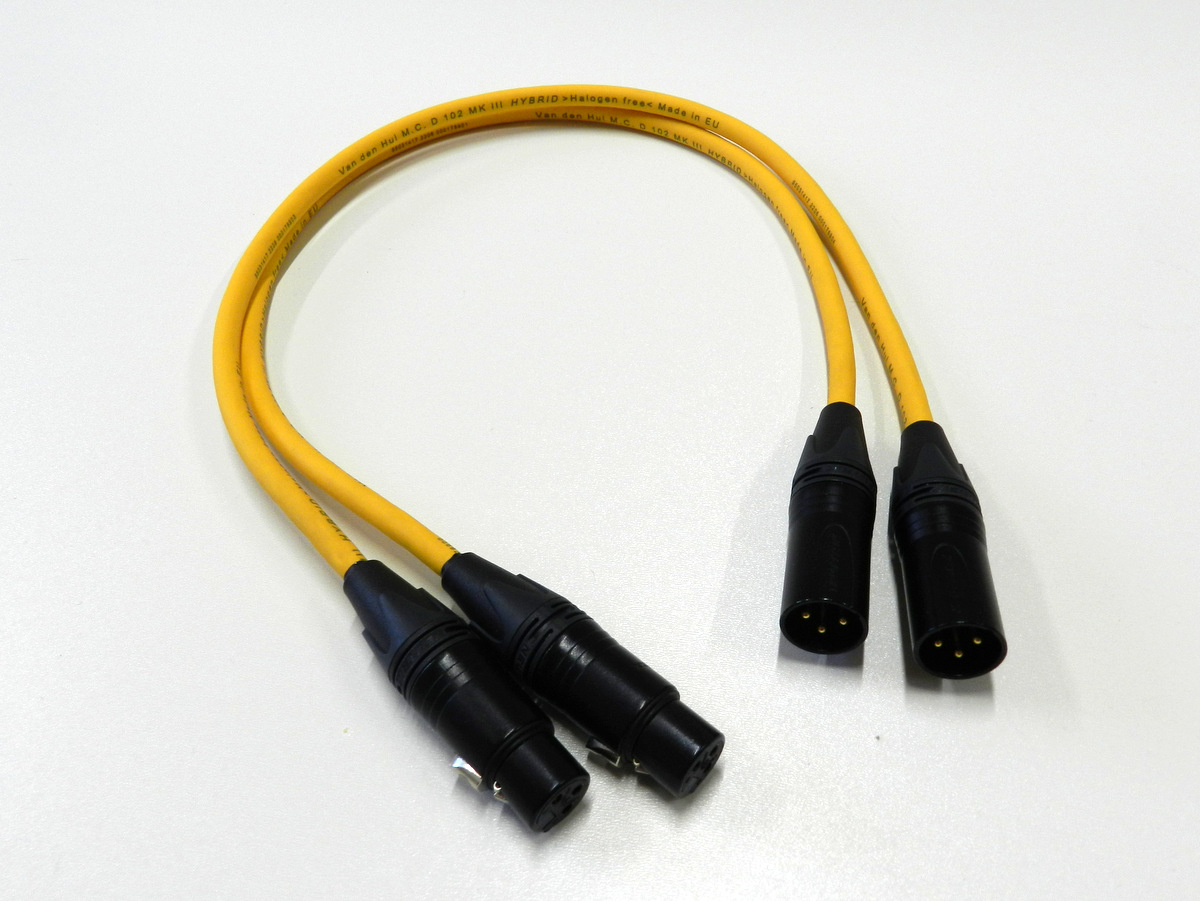

Van Den Hul D-102 MK111 XLR interlink cable 1.5 metre - no longer available
Van Den Hul XLR cable (More information)
- Availability:
- Discontinued
- Categories:
- Cables
- Sub-categories:
- Interlink cables
- Brand:
- Van Den Hul
- Delivery:
- FREE Delivery Australia Wide
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$289
(per pair)
FREE Delivery Australia Wide
This product is currently unavailable to order.
Related Products (View more related products)
-
ICE Cable - Primal - 14AWG, 4-Core Speaker Cable - 152m reel Box
14 Gauge, 4-core, twisted Pair speaker cable, Easy to pull reel box, 152m (white jacket)Also available by the metre in any cut lengths @ $7.00 per metre.$999(per box) -
Isotek EVO 3 Initium power cable 1.5 metre
EVO3 Initium is IsoTek’s new entry level power cable designed to offer high quality performance at an extremely fair price. Initium is a must for replacing all of your free standard black plastic power leads which have been designed down to a price... read more$169(per each) -
ICE Cable - Primal - 14AWG, 4-Core Speaker Cable - per metre
14 Gauge, 4-core, twisted Pair speaker cable, per metre.By the metre in any cut lengths @ $7.20 per metre.Also available in easy to pull reel boxes of 152m (white jacket)$7.20(per metre) -
ICE Cable - Primal - 14AWG, 2-Core Speaker Cable - 152m reel Box
14 Gauge, 2-core, twisted Pair speaker cable, Easy to pull reel box, 152m (white jacket)Also available by the metre in any cut lengths @ $3.60 per metre.$529(per box)
Product Categories
Product Details
THE D - 102 III HYBRID (HALOGEN FREE)
With our ever continuing technical improvements, it is logical to replace the already since 1982 available D - 102 Series (after 24 upgrades in the meantime) by an actual HYBRID version. Together with our Linear Structured Carbon ® technology, we have therefore applied some number of strands from our highly acclaimed 3T-technology into the new D-102 III Hybrid.
The D - 102 III HYBRID is a warm yellow-orange colored very flexible balanced interconnect with a 3 layer shielding.
- The 2 centre conductors are made of 40 dense and very pure silver coated strands made of a very high grade Matched Crystal (MC) OFC. Over each centre conductor an extra Linear Structured Carbon ® (LSC) saturated layer is applied.
This extra layer of LSC highly improves the quality of the signal transmission by performing electrical bridging on micro-scale and by converting the external magnetic field close to the conductors into an electrical signal again. - 4 strands of 3T have been applied into the design. 3T: True Transmission Technology offers a much higher resolution and detail compared to any other metal technology used so far.
- The resistance of each centre conductor is 5.5 Ohm/100 meter.
- The capacitance between the 2 internal conductors is a very low 37 pF/meter; so in balanced operation, even in rather high impedant circuitry, the overall losses and/or phase-shift remain very low.
In unbalanced operation the two internal conductors can simply be taken together with the shield acting as the signal return, though the better and preferred layout (which we apply) has the shield only connected to signal ground at the signal source side (marked by a ground-end marking sticker) and one of the internal conductors functions as signal return.
- The insulation of the two centre conductors is made of polyethylene foam; one in white, the other in brown.
- Surrounding the centre conductors, special treated artificial filler fibres provide a perfect protection against losses caused by increased humidity over a longer period.
- The triple shielding consists of 2 helical layers with a total of 180 dense and very pure silver coated strands made of a very high grade of Matched Crystal (MC) OFC with an extra layer of LSC saturated tape in between.
The warm yellow-orange colored jacket is made of our HULLIFLEX ®.
THE D - 102 III HYBRID (HALOGEN FREE) | |
|---|---|
| material | Hybrid |
| product category | car hifi - Interconnect |
| product category | interconnect - Balanced, Unbalanced, Analogue, Mid-range |
| cable type | Triple screened twin core (Balanced) |
| conductor material | HYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ® saturated layer(s) / 3T: True Transmission Technology |
| design purpose | Balanced audio interconnect |
| eff conductor | Cores: 0.31 mm² / Cores: ~AWG 22 / Cores: 40; Screen: 180 |
| external diameter | 7.25 mm. |
| jacket colors | Yellow-orange |
| resistance | Cores: 5.5 Ohm/100 m.; Screen: 0.62 Ohm/100 m. |
| capacitance | Core-core: 37 pF/m. |
| characteristic impedance | ~110 Ohm (in balanced configuration); Allows AES-EBU standard digital audio transmission |
| insulation | Cores: PE foam; Jacket: HULLIFLEX ® / 300 Vrms min. |
| connector types | Neutrik XLR. |
| standard sales units | Stereo pair packed with XLR (balanced) connectors in 1.0 and 1.5 m. lengths; |
| remarks | RCA connector terminated units are equipped with a ground-end marking sticker. |
