Van Den Hul Mini Sub Hybrid RCA subwoofer cable 5 metre

Van Den Hul subwoofer cable (More information)

 Need affordable installation?

Availability:
Ship in 3-5 Business Days
Categories:
Cables
Sub-categories:
Subwoofer cable
Brand:
Van Den Hul
Delivery:
FREE Delivery Australia Wide
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $143 (each)
Normally
$159
Savings
$16

FREE Delivery Australia Wide

This product is each.
Normally:
$159
Save:
$16

Vision Hifi is an Authorized Reseller. Order this product online or call us on 1300 721 480.

Related Products (View more related products)

Product Details

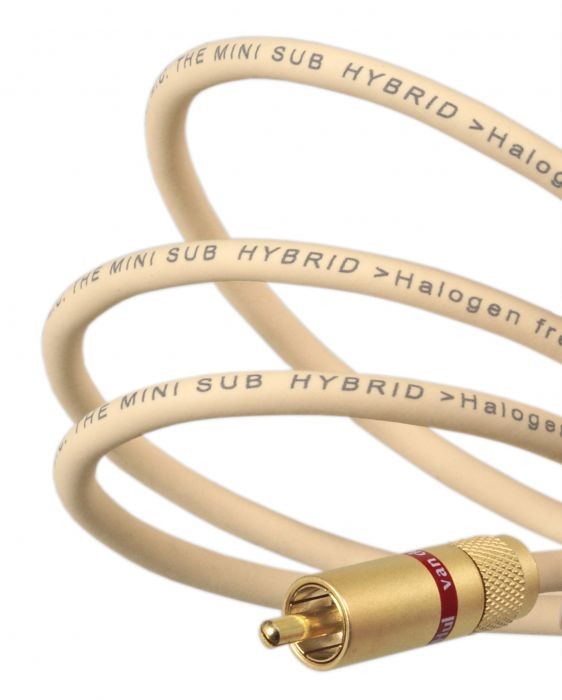

THE MINISUB HYBRID (HALOGEN FREE)

The MINISUB Hybrid typically has been designed as an active subwoofer cable. It is extremely flexible, and has an attractive cream colored jacket that blends easy in any interior, making it very suitable for longer length subwoofer cable application and all interconnections where there is need for a very flexible, price-efficient cable.

The design combination of a superior transmission quality, a very low conductor-conductor capacitance, a very high screening factor together with a high mechanical flexibility and a long durability, though not being easy to manage, successfully has been achieved.

The balanced construction, is made with two centre conductors each having 12 x 0.15 mm. strands. (AWG 24 each, respectively in red and black foamed polypropylene insulation).

The conductor material is large crystal OFC with a dense silver coating.

VDH Mini Sub


THE MINISUB HYBRID (HALOGEN FREE)

materialHybrid
product categoryinterconnect - Balanced, Unbalanced, Analogue, Entry-level
product categoryspeaker cable - Single-lead, Entry-level
cable typeScreened twin core (Balanced)
conductor materialLarge Crystal OFC with a dense Silver coating
design purposeActive Subwoofer cable / Stereo Interconnect
eff conductorCores: 0.212 mm2 / Cores: ~AWG 24 / Cores: 12; Screen: 144
external diameter5.0 mm.
jacket colorsCream
resistanceCores: 8.5 Ohm/100 m.; Screen: 1.7 Ohm/100 m.
capacitanceCore-core: 44 pF/m
insulation

Cores: Polypropylene foam; Jacket: HULLIFLEX / 300 Vrms min.

connector types

RCA.

standard sales units

As single in 3.0, 5.0 and 10.0 m. lengths.

remarks

RCA connector terminated units are equipped with a ground-end marking sticker.
