BlueStream HEX70ED-kit

BlueStream HEX70ED-KIT: HDBaseT Extender Set - 70m (4K up to 40m), RS-232 Pass through, Bi-directional IR, Bi-directional PoH (PoE) (More information)

 Need affordable installation?

Availability:
Ship in 3-5 Business Days
Categories:
Control
Sub-categories:
HDMI switching or transmission
Brand:
BlueStream
Delivery:
FREE Delivery Australia Wide
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $519 (each)

FREE Delivery Australia Wide

This product is each.

Vision Hifi is an Authorized Reseller. Order this product online or call us on 1300 721 480.

Related Products (View more related products)

Product Details

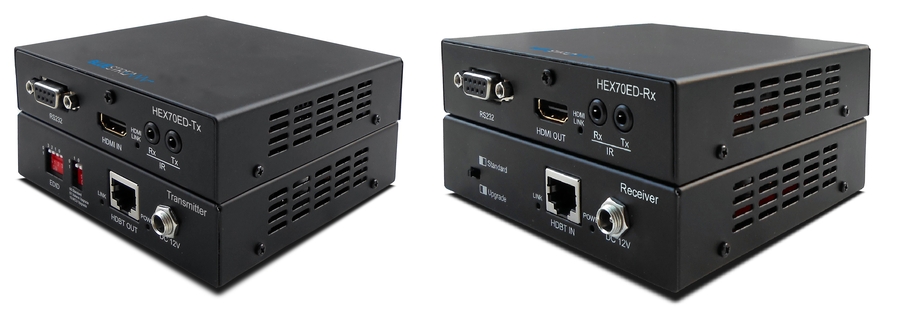

BlueSteam HEX70ED Kit

Description

Our HRX70ED-KIT 4K HDBaseT extender set offers market leading features and outstanding value. The product receives HDMI, RS-232, Bi-directional IR and Bi-directional PoH (PoE) up to lengths of 70m.

Box Contents

1 x HEX70ED-TX
1 x HEX70ED-RX
2 x Mounting brackets
1 x 12V/2A power supply
1 x IR emitter
1 x IR receiver


Key Features

  • Extends HDMI up to distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR from all input and output locations
  • Supplied with Blustream IR receiver and emitter
  • Advanced EDID management
  • HDCP compliant

Specifications

  • Video input
    • HEX70ED-Tx: 1X HDMI Type A, 19-pin, female
    • HEX70ED-Rx: 1x HDBaseT RJ45
  • Video output
    • HEX70ED-Tx: 1x HDBaseT RJ45
    • HEX70ED-Rx: 1X HDMI Type A, 19-pin, female
  • IR input 2x 3.5mm stereo jack
  • IR output 2x 3.5mm mono jack
  • RS232 control: 2x DB9 female
  • Power Supply: 12V/2A DC, screw type connector
  • Power Consumption: 9.5W
  • Dimensions 107x107x27mm (WxLxH)
  • Shipping Weight: 0.4kg
  • Operating Temperature: 32F to 104F (0C to 40C)
  • Storage Temperature : -4F to 140F (-20C to 60C)
  • Mounting kit included
