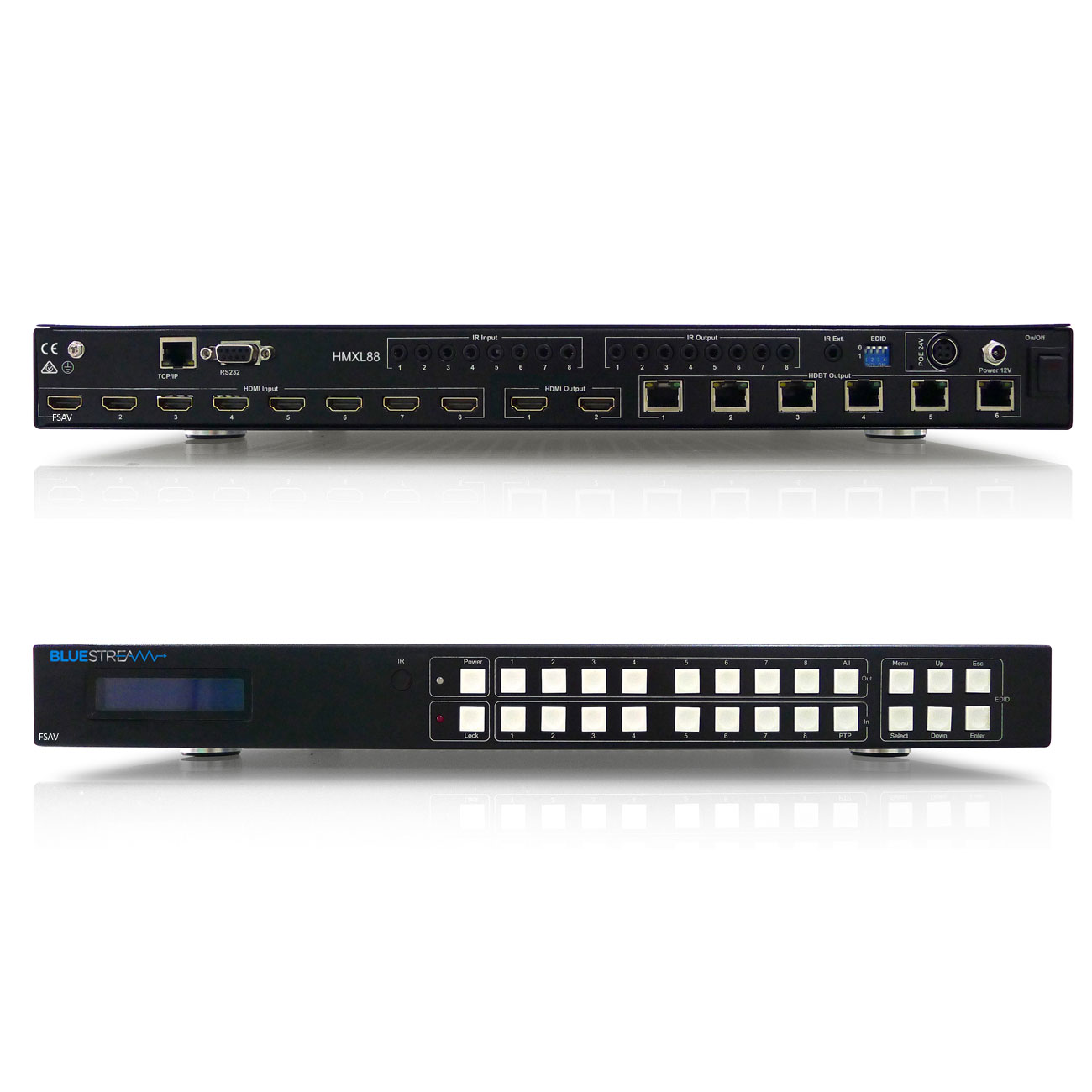

BlueStream HMXL88-V2 8 x 8 HD BaseT matrix switcher (availability - TBC)
- Availability:
- Out Of Stock
- Categories:
- Control
- Sub-categories:
- HDMI switching or transmission
- Brand:
- BlueStream
- Delivery:
- FREE Delivery Australia Wide
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$4,199
(each)
FREE Delivery Australia Wide
This product is currently unavailable to order.
Related Products (View more related products)
-
Vision Hifi can provide automated C-Bus lighting control, an elegant and sophisticated solution to make your home more comfortable and enjoyable. -
RTI - XP-3 Remote Control Processor
View product for more information... learn more.$1,399(per each) -
RTi IST10, 10" intelligent surface touchscreen remote control solution$2,899(per each) -
Thor PS10 model - Smart Power Station Surge & Filter
Surge & Filter. This PS10 can be argued as being the best combination available for providing pure and precise 240 (or 220) volts to your valuable electrical equipment$2,399.99(per each)
Product Categories
Product Details
Description
Our Essential 8x8 HDBaseT Matrix offers unprecidented performance and value for the custom installation market. The HMXL88 is a 4K 8x8 matrix with a combination of 6 x HDBaseT and 2 x HDMI Outputs. This allows for cost effective integration of local displays and AV receivers within an installation. The matrix delivers HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. It can also be seemlessly controlled by 3rd party control systems via RS-232 or IP.
Description
Our Essential 8x8 HDBaseT Matrix offers unprecidented performance and value for the custom installation market. The HMXL88 is a 4K 8x8 matrix with a combination of 6 x HDBaseT and 2 x HDMI Outputs. This allows for cost effective integration of local displays and AV receivers within an installation. The matrix delivers HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. It can also be seemlessly controlled by 3rd party control systems via RS-232 or IP.
Box Contents
1 x HMXL881x Rack mounting kit
1 x 24V/6.25A power supply
1 x 12V/6.25A power supply
1 x Remote control
1x IR receiver
6 x IR control cable - 3.5mm-3.5mm cable
8 x IR emitter
1 x User manual
Key Features
- Features 8x HDMI inputs which can be independantly routed to 6x HDBaseT outputs + 2x HDMI outputs
- Extends HDMI up to distance of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby
- Supports bi-directional IR from all input and output locations
- Control via front panel , IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers
- 3rd Party drivers available for all major home control brands
- Advanced EDID management
- HDCP compliant
- 1U Design for 19" rack mount integration - Mounting kit included
Specifications
- Video Input Connectors: 8x HDMI Type A, 19-pin, female, locking
- Video Output Connectors: 8x HDBaseT RJ45 connector
- RS-232 serial port: DB-9, female
- TCP/IP Control: RJ45, female
- IR Input ports: 9x 3.5mm stereo jack
- IR Output ports: 8x 3.5mm mono jack
- Rack-Mountable: 1 U rack height, rack ears included
- Dimensions (W x D x H): 428mm x 300mm x 43mm , without feet
- Shipping Weight: 2.7kg
- Operating Temperature: 32F to 104F (0C to 40C)
- Storage Temperature : -4F to 140F (-20C to 60C)
- Power Supply: 12V/6.25A DC
