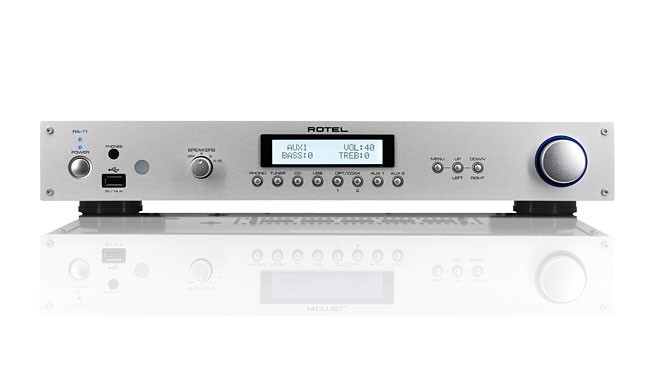

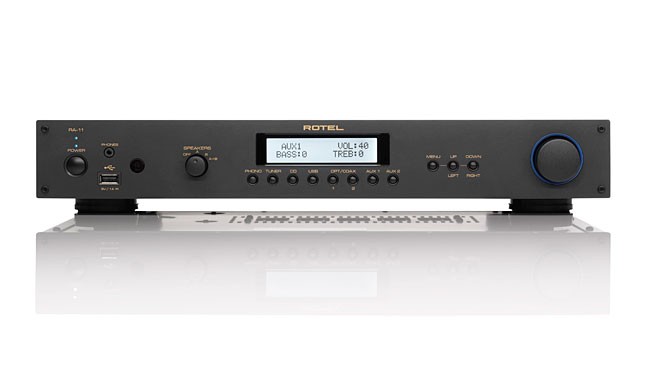

Rotel RA-11 Integrated Amplifier
Rotel RA-11 Integrated Amplifier (More information)
- Availability:
- Discontinued
- Categories:
- Hi-Fi
- Sub-categories:
- Stereo Amplifiers
- Brand:
- Rotel
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$999
(each)
Contact us for Delivery
This product is currently unavailable to order.
Related Products (View more related products)
-
-
Sonos Amp - A versatile multi-room audio amplifier for powering all your entertainment.$1,099(per each) -
SALE ENDS 2nd Jul at 3:00pm
Marantz MODEL 40n: Network Stereo Integrated Amplifier
Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analog feel and sound.$3,920(per each)Was $4,900Save $980. -
SALE ENDS 2nd Jul at 2:32pm
Marantz MODEL 50: Integrated 2.2 Stereo Integrated Amplifier
MODEL 50 was designed and engineered to be thoroughly modern, yet timeless. Engineered with Marantz proprietary technologies, this integrated amplifier pushes the boundaries of audio equipment design to reveal the musicality in all your stereo source... read more$2,800(per each)Was $3,500Save $700.
Product Categories
Product Details

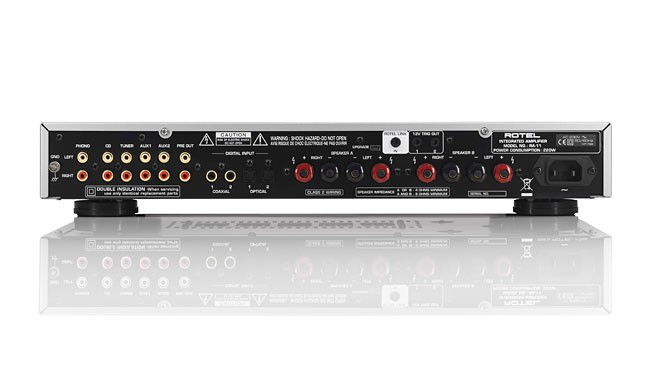

The RA-11 carries a similar set of features to the RA-12 but is slightly less powerful at 40 Watts per channel and is constructed in a slimline enclosure. Just like the RA-12, every critical signal chain component is selected to ensure that music from the RA-11 is delivered with as much detail, dynamics, clarity and emotion as possible. The RA-11 incorporates the same high-end Wolfson WM8740 24 bit/192kHz DAC chip as the RA-12 and the same complement of five conventional analogue inputs, four S/PDIF digital inputs, and an Apple authorised USB input. The RA-11 can be controlled through either its front panel buttons, via a remote handset, or an RT-12 and the Rotel Remote app for iPhone and iPad.
| Continuous Power Output | 40Watts/ch (20-20kHz, < 0.03%, 8 ?) |
| Total Harmonic Distortion (20Hz-20kHz) | < 0.03% at rated power |
| Intermodulation Distortion (60Hz:7kHz, 4:1) | < 0.03% at rated power |
| Frequency Response | Phono input 20Hz-15kHz, ±0.3dB Line Level Inputs 10Hz-100kHz, ±1dB |
| Input Sensitivity / Impedance | Phono input 2.5mV / 47 k ? Line Level Inputs 150mV / 24 k ? |
| Input Overload | Phono input 180mV Line Level Inputs 5V |
| Preamp Output / Impedance | 1V / 470 ? |
| Tone Controls - Bass / Treble | ±4 dB at 100Hz / 10kHz |
| Signal to Noise Ratio (IHF ?A" weighted) | Phono input 80dB Line Level Inputs 100dB |
| Digital Section | - |
| Frequency Response | 10Hz-95kHz ±3.0dB (MAX) |
| Signal to Noise Ratio (IHF ?A" weighted) | 100dB |
| Input Sensitivity/Impedance | 0 dBfs/75 Ohms |
| Pre-out/Impedance | 1.2V/470V (at -20dB) |
| Decodable Front USB/iPod Digital Signals | AAC (m4a), WAV, MP3, WMA (up to 48K 16bit) |
| Coaxial/Optical PCM | LPCM |
| File Formats | Real Audio, MP3, OGG Vorbis, WAV, AIFF and AU |
| General | - |
| Power Requirements (AC) | 120V, 60Hz (USA) 230V, 50Hz (Europe) |
| Power Consumption | 220Watts |
| Standby Power Consumption 0.5W | 0.5Watts |
| Dimensions (W x H x D) | 430 x 72 x 342mm (17 x 2 7/8 x 13 1/2ins) |
| Panel Height | 60mm (2 3/8 ins) |
| Weight (Net) | 6.39kg (14lbs) |
| Finishes | Black, Silver |
