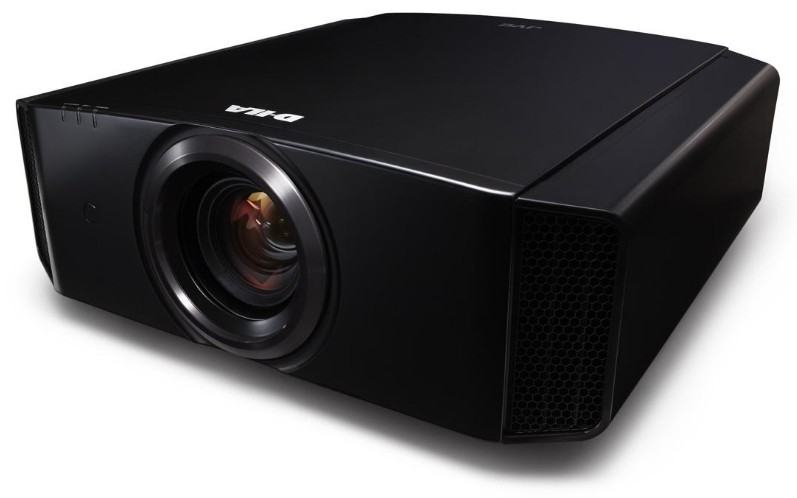

JVC DLA-X5500 Projector

JVC DLA-X5500 4K D-ILA Projector with optional 3D (3D Kits including Emitter & Glasses are available; sold separately) (More information)

 Need affordable installation?

Availability:
Special Order
Categories:
Home Cinema
Sub-categories:
Projectors
Brand:
JVC
Delivery:
FREE Delivery Australia Wide
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $6,160 (each)

FREE Delivery Australia Wide

This product is each.
This price is only available online.

Select a colour:

Vision Hifi is an Authorized Reseller. Order this product online or call us on 1300 721 480.

Related Products (View more related products)

Product Details

    Features

    • Resolution: 3840 x 2160 (in 2D)*; 1920 x 1080 (in 3D)
    • NSH 265W
    • Connectors: HDMI x 2 (3D, Deep Colour/HDCP 2.2), RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini DIN)
    • 6th generation 0.7" Full HD D-ILA (1920 x 1080) device x 3
    • 4K resolution (3840 x 2160) achieved with e-shift 4 Technology including Multiple Pixel Control image processor*
    • 4K signal input (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
    • For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
    • Exceptionally bright 1,800 lm achieved with 265W high-output NSH lamp
    • 4K Projection (3840 x 2160 pixels*) achieved with optical engine featuring e-shift 4 Technology with Multiple Pixel Control image processor
    • Ultimate dynamic contrast ratio of 400,000:1 and native contrast ratio of 40,000:1 achieved with original D-ILA device and the high-output lamp
    • Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
    • Colour Management System with 6-axis Matrix
    • Auto-Calibration Function using an optical sensor** is capable of optimizing essential elements in the image, including colour balance, gamma characteristics, colour space and colour tracking
    • To match the trends towards higher resolution and to deliver immersive high-definition 4K images, Multiple Pixel Control has been improved with a new analysis algorithm capable of more accurate diagonal-detection between frames for full HD and 4K resolution signals.
    • Clear Motion Drive compatible with signals up to 4K60P 4:4:4, can reproduce moving images without ghosting or afterimage issues
    • Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
    • Lens Memory function (5 memories)
    • Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
    • *Resolution is 1920 x 1080 at 3D mode **Exclusive JVC software installed in PC and optical sensor are required. Please visit the JVC website for details.
    • 12-point manual gamma adjustment included in Auto-Calibration Software
    • Pixel Adjust function allows user to precisely correct colour deviation in 1/16-pixel increments; also segments the screen into 121 points for individual adjustment. Two customized settings can be stored in the memory.
    • Screen Adjustment Modes: 136 modes
    • Compatible with Hybrid Log-Gamma that will come into use for broadcasting applications
    • Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input up to 4K60P 4:4:4

    DLA-X5500W - D-ILA Projector

    e-shift Technology
    Yes (e-shift4 Technology)
    Lens
    Zoom
    2X zoom & focus, motorised
    f
    21.4 -- 42.8mm
    F
    3.2 -- 4
    Projection size
    60" to 200"
    Lamp life
    Approx. 4500 hours in Low mode
    Brightness
    1,800 lm
    Contrast Ratio
    Native: 40,000:1, Dynamic: 400,000:1
    Video format
    Digital: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24,3840 x 2160p 60/50/30/25/24, 4096 x 2160p 60/50/30/25/24 [2]
    PC input signal
    HDMI
    VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+
    Video input terminals (back panel)
    HDMI
    2 (3D/Deep Colour/HDCP 2.2)
    Output terminals (back panel)
    3D sync
    1 (Mini DIN 3-pin)
    Control terminals
    RS232C
    1 (D-sub 9-pin)
    Trigger
    1 (mini jack, DC12V/100mA)
    LAN (RJ45)
    1
    Device
    0.7-inch Full HD D-ILA (1920 x 1080) x3
    Resolution
    3840 x 2160 (2D) [1]
    Lens shift function
    +/-80% vertical & +/-34% horizontal, motorized
    Light source lamp
    NSH 265 W
    3D
    3D format
    Frame packing
    720p 60/50, 1080p 24
    Side-by-side
    720p 60/50, 1080p 60/50/24, 1080i 60/50
    Top & bottom
    720p 60/50, 1080p/24
    General
    Noise level
    21dB (when the lamp is in Low mode)
    Power consumption
    Projector in use
    380 W
    Standby
    0.4 W
    Networked standby
    1.5 W (LAN), 1.3 W (RS232C),1.5 W (LAN and RS232C)
    Switchover time
    20 min. (To standby or networked standby; default)
    Dimensions: W x H x D, mm
    455 x 179 x 472
    Weight, kg
    15.4
