Bowers & Wilkins CCM7.5 S2 In-Ceiling Speaker

B&W Reference Series In-Ceiling Speakers - for situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 700 Series models feature matching performance levels to their in-room in the 700 Series counterparts. (More information)

 Need affordable installation?

Availability:
Call to Buy
Categories:
Speakers
Sub-categories:
In-Ceiling Speakers
Brand:
Bowers & Wilkins
Delivery:
FREE Delivery Australia Wide
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $999 (each)

FREE Delivery Australia Wide

This product is each.

Order this product by calling us on 1300 721 480.

 Call to Buy

Vision Hifi is an Authorized Reseller. Order this product by calling us on 1300 721 480.

Related Products (View more related products)

Product Details

Bowers & Wilkins CWM7.5 S2 In-Ceiling Speakers

-- See nothing, hear everything --

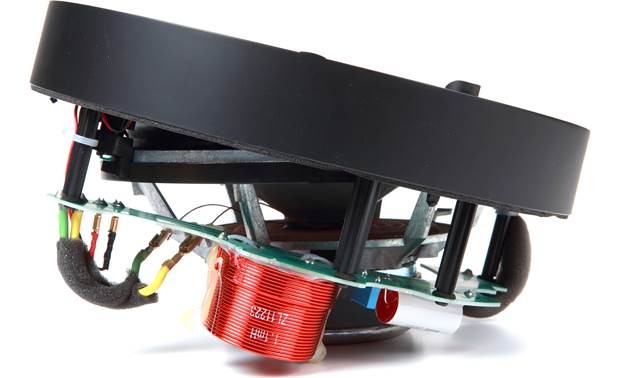

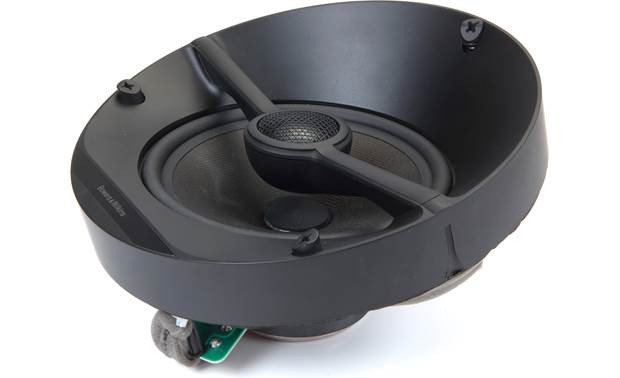

Designed for down-firing in-ceiling applications, CCM7.5 S2 can be used as the left, centre, right and rear or even Atmos channels speakers in a discreet home cinema system. Its configuration includes a 25mm Carbon Dome tweeter, a 180mm Continuum cone mid/bass cone angled to the mounting surface allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound.


Technical Specifications

Technical features:
Carbon Dome tweeter, Continuum mid/bass.

Description:
2-Way In-Ceiling System

Drive units:
1x 25mm (1 in) Carbon Dome high-frequency
1x 130mm (5 in) Continuum cone mid/bass

Frequency range -6dB:
-6dB at 25Hz - 33kHz

Frequency Response -3dB:
32Hz - 28kHz (+/-3dB)

Sensitivity:
90dB spl (2.83Vrms, 1m)

Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m)
<1% 70Hz - 33kHz
<0.5% 100Hz - 28kHz

Nominal impedance:
8ohm (minimum 4.8ohm)

Recommended amplifier power:
25W - 150W into 8ohm on unclipped program

Dimensions:
Frame diameter: 290mm (11.4in)
Depth behind surface: 128mm (5in)
Cut-out diameter: 254mm (10in)
Net weight 3.1kg
Grille Finish: White
