Bowers & Wilkins CWM7.5 S2 2-Way In-Wall Speaker
B&W Reference Series In-Wall Speakers - for situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 700 Series models feature matching performance levels to their in-room in the 700 Series counterparts. (More information)
- Availability:
- Call to Buy
- Categories:
- Speakers
- Sub-categories:
- In-Wall Speakers
- Brand:
- Bowers & Wilkins
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Related Products (View more related products)
-
Bowers & Wilkins CWM7.3 S2 In-Wall Speaker
B&W Reference Series In-Wall Speakers - for situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 700 Series models feature matching performance levels to their in-room in the 700 Series counterparts.$2,699(per each) -
Bowers & Wilkins CWM7.4 S2 - 2.5-Way In-Wall Speaker
B&W Reference Series In-Wall Speakers - for situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 700 Series models feature matching performance levels to their in-room in the 700 Series counterparts.$1,499(per each) -
Bowers & Wilkins: CCM662 High Performance In-Ceiling Speaker
This flagship high-performance speaker features a Nautilus swirl-loaded and impressive power handling characteristics.$1,399(per pair) -
Bowers & Wilkins: CCM663 High Performance In-Ceiling Speaker
... the construction of this high-performance 6in in-ceiling speaker results in a cleaner, faster bass, and an excellent off-axis response.$999(per pair)
Product Categories
Product Details
Bowers & Wilkins CCM7.5 S2 In-Wall Speakers
-- See nothing, hear everything --

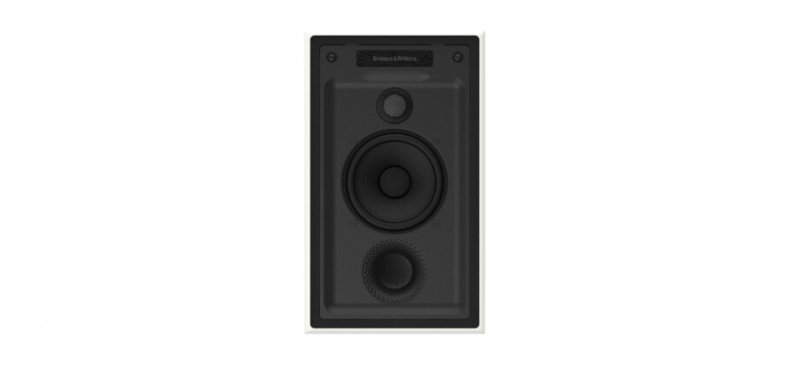

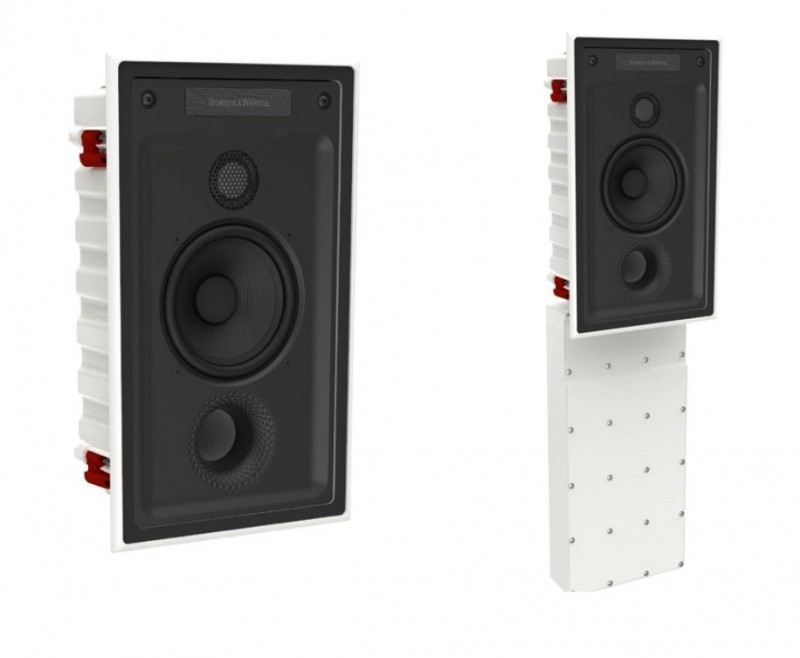

The CWM7.5 S2 share the acoustic configuration of the 707 S2 and like its sibling, it houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a B&W trademarked forward-firing Flowport for outstanding bass response from a relatively small footprint. It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated and expandable back-box, ensuring retro-fittable installation plus optimum performance. It's an outstanding performer when using in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theater application.
Technical Specifications
Technical features:
Carbon Dome tweeter, Continuum mid/bass, Flowport.
Description:
2-Way In-Wall System
Drive units:
1x 25mm (1 in) Carbon Dome high-frequency
1x 130mm (5 in) Continuum cone mid/bass
Frequency range -6dB:
-6dB at 43Hz - 33kHz
Frequency Response -3dB:
45Hz - 28kHz (+/-3dB)
Sensitivity:
86dB spl (2.83Vrms, 1m)
Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance:
8ohm (minimum 3.8ohm)
Recommended amplifier power:
25W - 150W into 8ohm on unclipped program
Dimensions:
Frame height: 356mm (14in)
Frame width: 212mm (8.5in)
Depth behind surface: 102mm (4in)
Cut-out height: 331mm (13in)
Cut-out height w/PMK: 336mm (13.2in)
Cut-out width: 187mm (7.4in)
Cut-out width w/PMK: 192mm (7.6in)
Protrusion: 8mm (0.3in)
Reservoir Box height: 385mm (15.2in)
Reservoir Box width: 181mm (7.1in)
Net weight 3.8kg

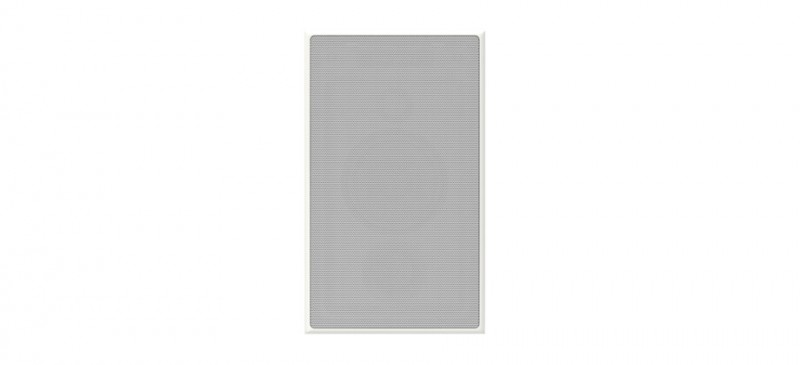

Grille Finish: White
