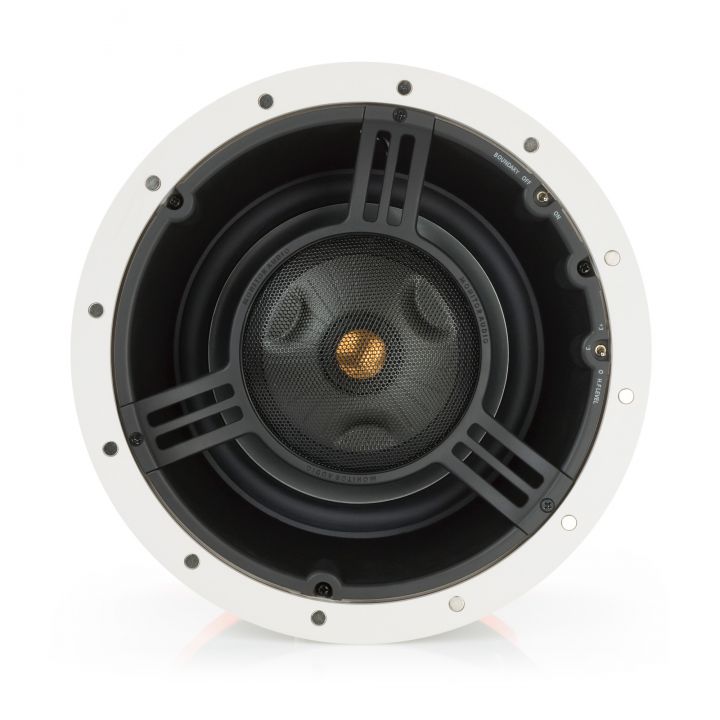

Monitor Audio C280IDC in-ceiling speaker
Features an 8" C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM gold dome tweeter. (More information)
- Availability:
- Call to Buy
- Categories:
- Speakers
- Sub-categories:
- In-Ceiling Speakers
- Brand:
- Monitor Audio
- Delivery:
- FREE Delivery Australia Wide
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Related Products (View more related products)
-
Sonance Visual Performance VP82R in ceiling speakers
Sonance VP82R in ceiling speakers$1,699(per pair) -
Bowers & Wilkins CCM665 In-Ceiling Speaker
The entry-point in the CI600 in-ceiling range, the CCM665 is perfect for smaller listening areas like bathrooms or kitchens$599(per pair) -
Sonance Visual Performance VP46R SST/Surr in ceiling speakers
Sonance Visual Performance VP46R SST/Surr in ceiling speakers$659(per each) -
Bowers & Wilkins CCM662 In-Ceiling Speaker
The top 6in in-ceiling speaker in the CI 600 series. This high-performance speaker features a Nautilus swirl-loaded 25mm (1in) aluminium dome tweeter that pivots for adjustable off-axis treble response.$1,399(per pair)
Product Categories
Product Details
True 3-way design provides rich mid range detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3dB /0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.
- Unique IDC dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all directions. Easily directed during post install set-up.
- C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
- Special Inverted C-CAM RST profile mid-range cone provides improved dispersion pattern.
- True 3-way designs.
- High overall efficiency.
- High frequency level adjustment (+/- 3dB).
- Boundary compensation control.
- Audio match with CP range 200 models and Silver Series hi-fi speakers.
- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
- All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
Frequency Response
50 Hz - 30 kHz
Impedance (Nominal)
6 Ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
120 W
Recommended Amp Requirements
30 - 120 W
Drivers Unit Complement
8" C-CAM cone bass driver, pivoting IDC module housing:
4" C-CAM RST inverted mid range driver
1" C-CAM gold dome tweeter
Adjustment Controls
HF Level Switch (+3dB / 0dB / -3dB)
Boundary Compensation Switch
Overall Diameter:(including grille)
285 mm
(11 1/4 inch)
Overall Depth:(including grille)
160 mm
(6 5/16 inch)
Cut Out Diameter
247 mm
(9 3/4 inch)
Mounting Depth
156 mm
(6 1/8 inch)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic
(RoHS2 Compliant)
Pre-Construction Bracket
CB8 (Green)
Weight
3.42kg (7lb 8oz)
