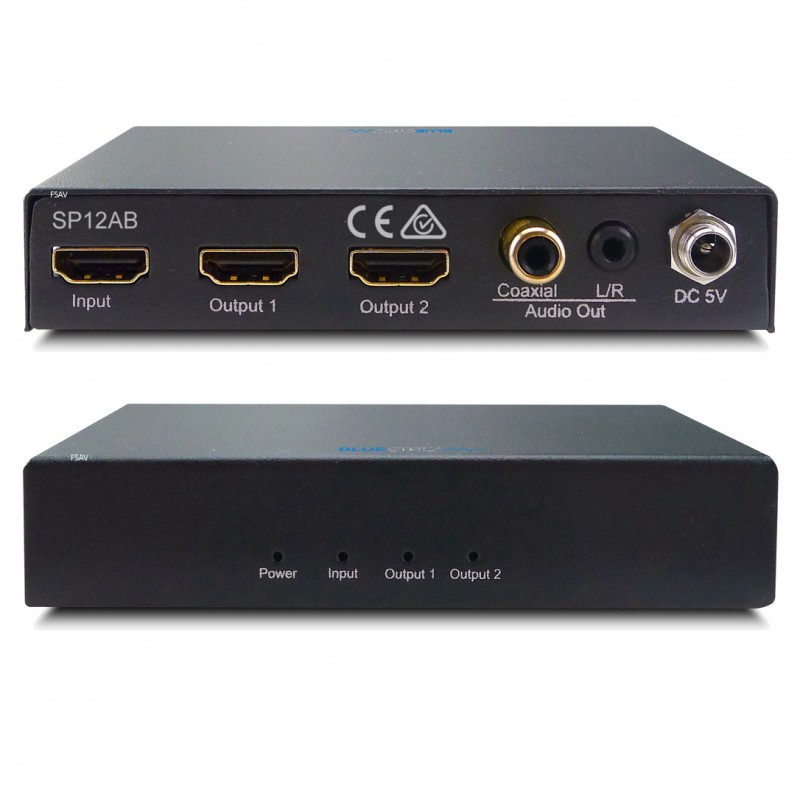

BlueStream SP12AB 1 HDMI in to 2 HDMI out, splitter

SP12AB: 2-Way 4K HDMI splitter with Audio Breakout and EDID Management (More information)

 Need affordable installation?

Availability:
Ship in 3-5 Business Days
Categories:
Control
Sub-categories:
HDMI switching or transmission
Brand:
BlueStream
Delivery:
FREE Delivery Australia Wide
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $129 (each)
FREE Delivery Australia Wide

This product is each.

Vision Hifi is an Authorized Reseller. Order this product online or call us on 1300 721 480.

Related Products (View more related products)

Product Categories

Product Details


Description

Our SP12AB 4K HDMI splitter distributes a single HDMI source to two simultaneous outputs. The unit transmits all HDMI resolutions up to and including 4K. The 2-Way splitter also includes the advanced features of audio breakout and EDID management.

Box Contents

1 x SP12AB
1 x 5V/1A DC power supply
1 x Mounting kit


Key Features

  • Features 1x HDMI input that is replicated to 2x HDMI outputs
  • Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports 3D signal display
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio de-embedded to analogue L/R audio and Coaxial digital outputs concurrently
  • Advanced EDID management
  • HDCP compliant

Specifications

  • Video Input Connectors: 1x HDMI Type A, 19-pin, female
  • Video Output Connectors: 2x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)
  • EDID: 4-PIN DIP switch
  • Rack-Mountable: Rack ears included
  • Dimensions (W x H x D): 1117mm x 61mm x 22mm , without feet
  • Shipping Weight: 0.4kg
  • Operating Temperature: 32F to 104F (0C to 40C)
  • Storage Temperature: -4F to 140F (-20C to 60C)
  • Power Supply: 5V/1A DC
