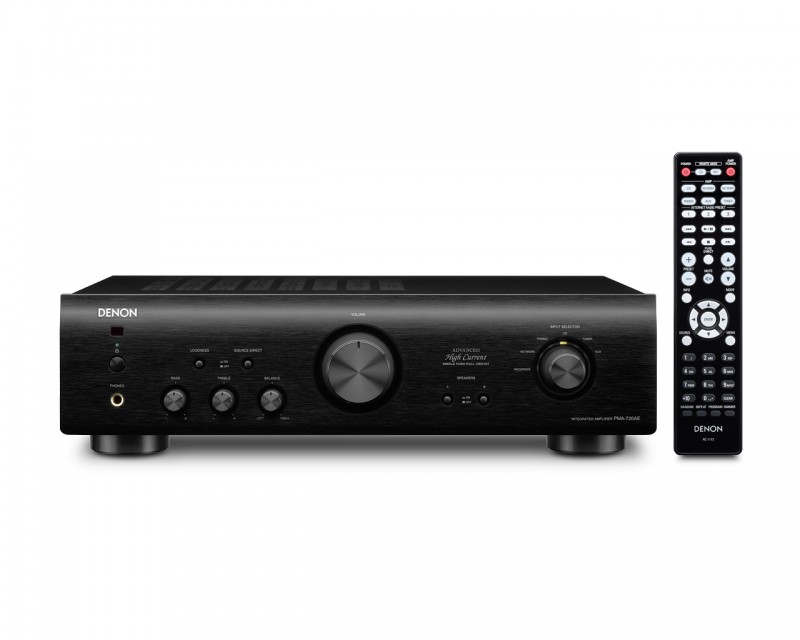

Denon PMA720 integrated amplifier

The PMA-720AE is equipped with an Advanced HC (High-Current) Single Push-Pull Circuit that enforces Denon's design concept for pure audio amplification. This design ensures that you hear delicate musical details, reliably supported by plenty of power. Playback faithful to the original sound is also made possible by a circuit board layout that can handle the greater power from the amplifier section and appropriately respond to the output level and unique character of the signal. In addition, the internal construction of the PMA-720AE has been carefully designed to prevent unwanted vibration from adversely affecting the audio signal.

High Current (HC) Single-Push-Pull Circuit for musical detail and power
The PMA-720AE incorporates HC transistors with 2 to 3 times the electrical current supply capability of conventional power transistors for audio. Denon's acclaimed HC Single-Push-Pull Circuit has been inherited from its high-end models which, together with a fully discrete amplifi er design, produces a powerful sound fi lled with beautiful musical details.

High-speed, high-capacity power supplycircuit for HC Single-Push-Pull
The PMA-720AE's power circuit uses a block capacitor that Denon engineers have jointly developed with a parts manufacturer and a Schottkybarrier diode that features low internal resistance for low loss, short recovery time, and negligible rectifying noise. This highly stable electrical current supply further brings out the expressive power of sound produced by the HC Single-Push-Pull Circuit.

Wide dynamic range, supporting high-grade audio sources
The PMA-720AE's tone control and power amplifi er circuit have been carefully adjusted to secure a frequency response of up to 100 kHz during actual use. Also, improvements in the volume circuit suppress noise in the amplifier to achieve high sonic resolution. These features and others give the PMA-720AE plenty of latitude to handle the wide dynamic range of high-grade audio sources such as Super Audio CD and DVD-Audio.

Main transformer with separate power supplies for analogue
The coiled wire within the power transformer for the audio signal and control circuits has been separated to eliminate mutual interference and adverse infl uences on sound quality. The PMA-720AE also has a separate transformer to minimize power consumption when in "standby". Ensuring a more environmentally friendly design.

NEW FEATURES
- Improved sound quality - Newly-designed system remote control - ECO friendly with low power consumption in stand by and auto power off - New higher quality speaker terminals

STATE-OF-THE-ART DENON SOLUTIONS FOR MAXIMISING CONTENT QUALITY
- 85 W x 2 ch (4 ohms) - High Current (HC) Single-Push-Pull Circuit - Wide dynamic range, supporting high-grade audio sources - Main transformer with separate power supplies - Micro-processor stop mode - Vibration-resistant design with Direct Mechanical Ground Construction - European sound-tuned - Phono Equalizer Amp (MM) - Aluminium front panel

EASE-OF-USE
- ECO friendly with low power consumption in stand by and auto power off - Remote also controls Denon CD players and network players - Front panel layout, designed for ease of use

Power amplifier section

• Rated output
  85 W + 85 W
  (4 ohms, 1 kHz, THD 0.7%)
  50 W + 50 W
  (8 ohms, 20 Hz - 20 kHz, THD 0.07%)
• Total harmonic distortion
  0.01% (8ohms, 1 kHz)

Preamplifier section

• Input sensitivity/impedance
  120 mV / 47 kohms
• Frequency response
  10 Hz - 100 kHz - +1, ?3 dB (DIRECT mode)
• S/N Ratio
  107 dB (IHF-A weighted, DIRECT mode) Line 107dB Phono 86 dB

General

• Power supply
  AC 230 V, 50/60 Hz
• Power consumption
  200 W (Stand-by: less than 0.3 W)
• Dimensions (W x H x D)
  434 x 121 x 308 mm
• Weight
  7.1 kg

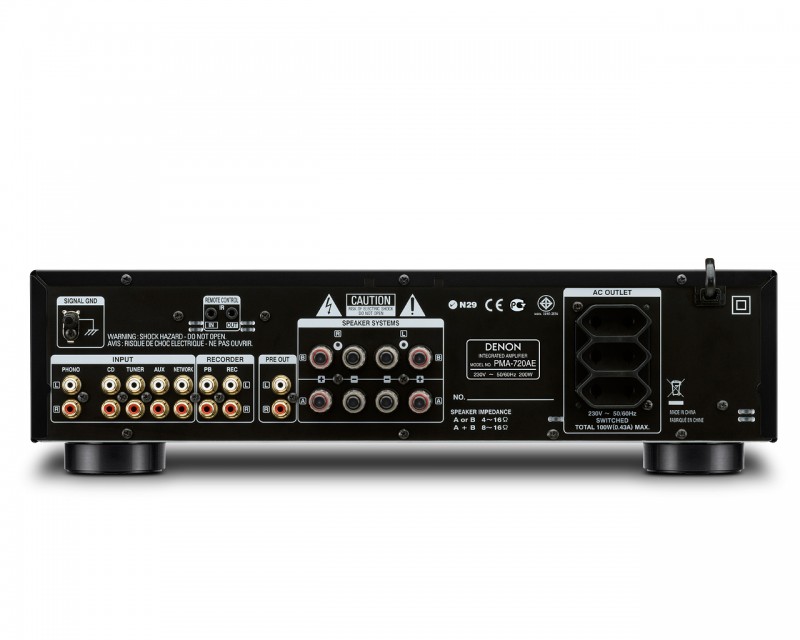

Port

• IN
  - Phono (MM) x 1
  - CD x 1
  - Tuner x 1
  - Line x 1
  - Recorder (Playback) x 1
• OUT
  - Recorder (REC) x 1
  - Preout x 1
• OTHER
  - AC outlet x 3
