Musical Fidelity MX-VYNL fully balanced MM/MC phono pre-amplifier
The MX-VYNL is a Fully balanced, configurable, high performance phono stage. (More information)
- Availability:
- Call to Buy
- Categories:
- Hi-Fi
- Sub-categories:
- Pre-amplifier
- Brand:
- Musical Fidelity
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Related Products (View more related products)
-
Pro-Ject X1 turntable - No Cartridge
Pro-Ject‘s classic turntable design re-imagined - See below for Ortofon cartridge options!$1,299(per each) -
Hybrid Digital Integrated Amplifier$1,299(per each) -
Pro-Ject Audio - Debut Carbon EVO with Ortofon 2M Red Cartridge
Time for Evolution. We have taken our most popular turntable design and improved every aspect of it.The result is an incredibly refined product.$1,099(per each) -
Marantz SACD 30N Networking CD player with Heos
COMPLETE DIGITAL SOURCE PLAYERFeaturing network capabilities and exquisite CD and SACD playback, SACD 30n was designed for any experienced audiophile who appreciates flexibility in format.$4,999(per each)
Product Categories
Product Details
MX-VYNL - Overview
The MX-VYNL is a fully balanced, very high performance phono stage, able to operate with virtually any moving coil or moving magnet cartridge. With both traditional RCA inputs and our unique XLR fully balanced connection the MX-VYNL can be connected to 2 turntables simultaneously.
The MX-VNYL offers a wide range of input impedance settings for moving coil cartridges as well as several capacitance settings for moving magnet units. Unlike many of our competitors units the MX-VYNL allows easy adjustment of these settings while playing. This allows easy experimentation and tuning to find the optimum setting for all your equipment.
The MX-VYNL also includes our renowned RIAA correction that offers extremely accurate results to beyond 80kHz. That may sound extreme, but there is a good deal of information above 20 kHz that needs correction. If it isn't corrected, it will show itself as ringing and overshoot.
With both extraordinarily low noise and exceptional overload margin the MX-VYNL can comfortably handle even the most demanding of cartridges and satisfy the most discerning of listeners.
MX-VYNL in brief
- Fully balanced XLR and traditional RCA inputs
- Fully balanced XLR and traditional RCA outputs
- Fully isolated inputs allow for switching between two turntables at once
- Adjustable input impedance on MC whilst it is playing
- Adjustable capacitance on MM whilst it is playing
- Very wide overload margin
- Accurate RIAA to beyond 80kHz
- Incredible noise ratio
- Low impedance output
- State of the art SMD technology
- Beautiful aesthetics and build quality
MX-VYNL - Specifications
Output
- 4 Volts RMS single ended from RCA sockets
- 8 Volts RMS balanced from XLR sockets
Performance
- Frequency response: RIAA +/- 0.1dB IEC +/- 0.1dB
MM:
- Channel separation: < -86dB
- SNR A-wtd: < -101dB
- THD: < 0.007%
- XLR input: 5mV / 2.5mV selectable
- 70mV max (23dB headroom)
MC:
- Channel separation: < -83dB
- SNR A-wtd: < -98dB
- THD: < 0.01%
- XLR input: 0.8mV / 0.4mV selectable, 12mV max (24dB headroom)

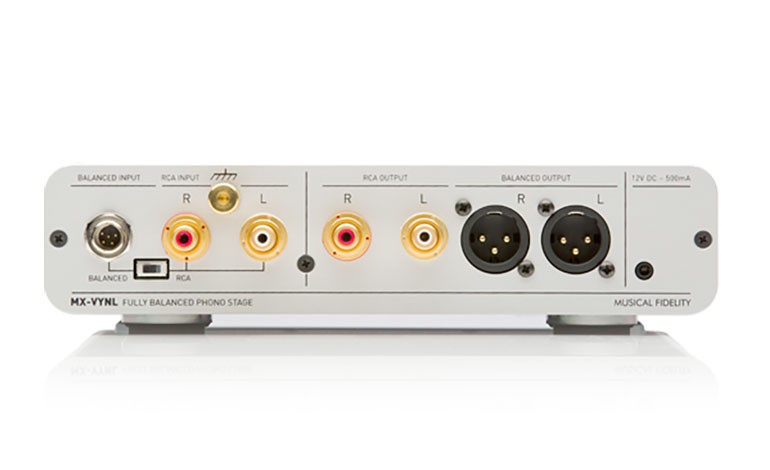

Inputs
- Balanced Mini-XLR
- RCA 1 pair RCA sockets
Outputs
- Balanced XLR male sockets EIA Standard RS-297-A
- RCA 1 pair RCA sockets
Power
- Connector: 1.3mm pin DC power jack
- Outboard power supply: 12V/500mA DC
- Mains voltages 100-240VAC 50-60Hz universal worldwide supply
- Consumption < 8 watts
Weight
- Weight (unpacked / packed): 1.9Kg / 2.4 Kg
Dimensions
- Width 220 mm
- Height (including feet) 53 mm
- Depth (front to back) 215 mm
Included accessories
- Mains adaptor
- Manual
