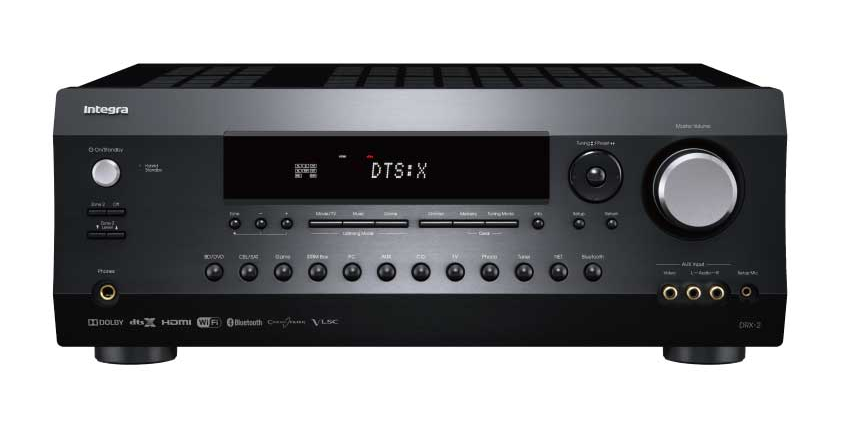

Integra DRX-2.3B 7.2 Network AV Receiver

Integra Power

The DRX-2 amplifies accurate, noise-free signal processing with high-current power for dynamic speaker control. The result is pure, rich and authentic sound. Integra's dynamic audio amplification delivers 80 Watts per channel (8 Ohms, 20 Hz?20 kHz, 0.08% THD, 2 Channels Driven) with 25 amps of high instantaneous current capability.

Smooth Analog Signal

Vector Linear Shaping Circuitry (VLSC) removes pulse noise generated in D/A conversion and allows the sound wave to be reproduced with extremely high fidelity for a smooth analog signal. This is applied to the front left and right channels.

Flexible Zone 2 Audio

The DRX-2 features Powered Zone 2 to bring audio to speakers connected to the receiver into a second room, Zone 2 Line Out for use with an outboard amp, and an assignable Zone 2 DAC for NET and USB audio sources.

Object-Based Sound Up to 5.1.2 Channels

Supports Dolby Atmos and DTS:X* for an immersive three-dimensional sound-space.

Additionally, the Dolby surround up-mixer processes content not mixed for Dolby Atmos to fill the flexible speaker layouts of a Dolby Atmos system.

Learn More About Dolby Atmos

Learn More About DTS:X

UltraHD / HDR Connectivity

The DRX-2's HDMI specifications and HDCP 2.2 compatibility support the latest formats being released by Hollywood. The latest HDMI specs offer a significant increase in bandwidth (up to 18Gbps) to support new features such as 4:4:4 color space and 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution. The DRX-2 enables transmission of High Dynamic Range (HDR) formats, with BT.2020 support, and provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image.

The DRX-2 also effortlessly upscales 1080p video to stunning 4k UltraHD.

Stream It Easy

The DRX-2 has Google Cast for Audio, AirPlay, Wi-Fi and Bluetooth technologies built in. Stream virtually any audio from a smartphone, tablet or PC to your home theater for powerful sound.

With Spotify, Pandora, Deezer and TuneIn built-in, you can select a station and search for music available on these services via the Onkyo Control Pro app on your phone. The free Integra Control Pro app puts a range of streaming options at your fingertips, from universal hi-res audio via network-attached devices to internet streaming services to music on your smartphone and tablet. Further, Tidal and Google Cast for Audio will be operable with an upcoming firmware update.

App Control

The Integra Control Pro app for iPod touch®/iPhone,® Android, and Kindle devices is a convenient way to control your home entertainment from anywhere within wireless range. The app has a clear graphical interface to control playback, adjust settings and handle content across multiple zones. The app serves hi-res, lossless, and compressed audio files (including 192 kHz/24-bit FLAC, DSD, and Dolby® TrueHD) to the DRX-4 from your mobile devices, and gives it stunning sound.

? ? ? ? ? ?

384 kHz/32-bit Hi-Grade DAC

No matter what you're listening to, it will sound powerfully full, clean and clear. A premium-quality AK4458 digital-to-analog converter from Asahi Kasei implements unique low-distortion filtering technologies for clear sound, and unlocks the full potential of any audio format, including compressed, lossless, and hi-res audio (MQA, MP3, WMA, WMA Lossless, FLAC, WAV, AAC, Apple Lossless, AIFF, DSD 11.2 MHz, and Dolby TrueHD).

Integra's Original Approach to Room Correction

AccuEQ conducts two measurements- one to set the level, distance and crossover for ALL speakers, including the subwoofer. Choose to include or bypass EQ measurement for front left and right speakers, and choose to automatically or manually set the EQ. Further, you can save your own manual EQ settings into three available presets.

The new AccuReflex technology aligns the phase of upfiring "height" speakers with the sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.

Learn more

Perfect for Custom Installation

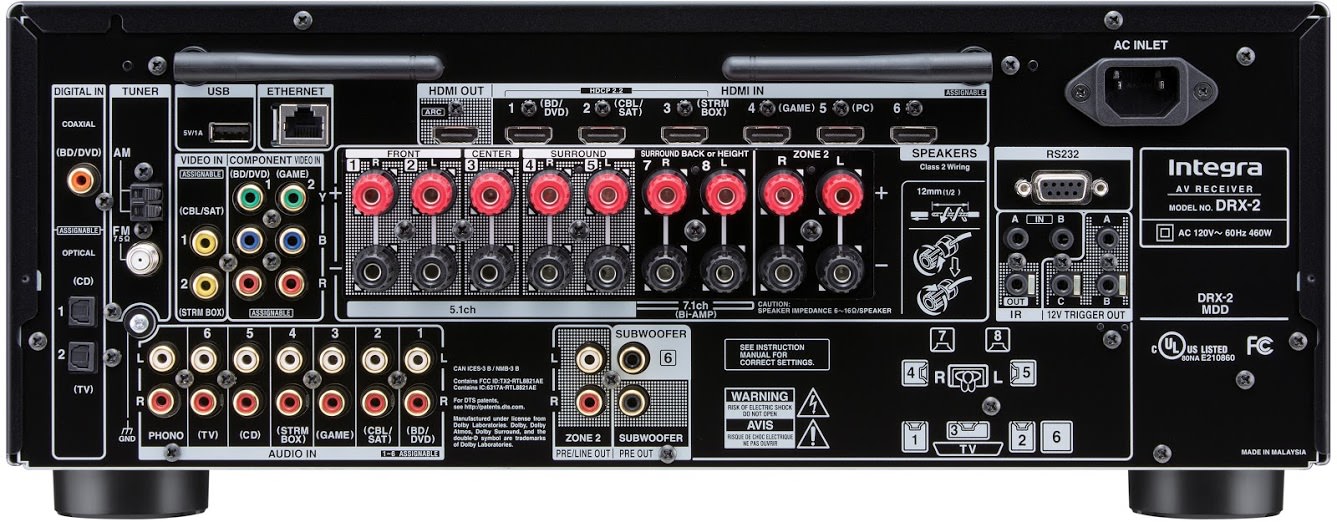

Integra products are designed and engineered to meet the demands of custom audio/video systems installers. The DRX-2 includes system integration connectivity such as RS232 and IP control with support for 2-way communication with 3rd party home automation systems. A pair of infrared (IR) inputs and an IR output make for a clean, reliable installation and allow pass-through of IR signals to control other devices connected to the DRX-2, such as a TV or Blu-ray player. Three fully programmable 12 volt triggers can be used to raise/lower a projection screen, power on/off an external amplifier and open/close the drapes all with the touch of a button! Optional rack mount kits for all models provide a clean, finished look when installed in racks and cabinets. Integra works closely with control systems partners such as Savant, Crestron, URC, RTI, and Ihiji and supports Control4 Simple Device Discovery Protocol (SDDP) and AMX Device Discovery for simplified system integration.




?Note: Support for Google Cast?, FireConnect? and MQA functionality will be enabled on these receivers following future firmware updates.
