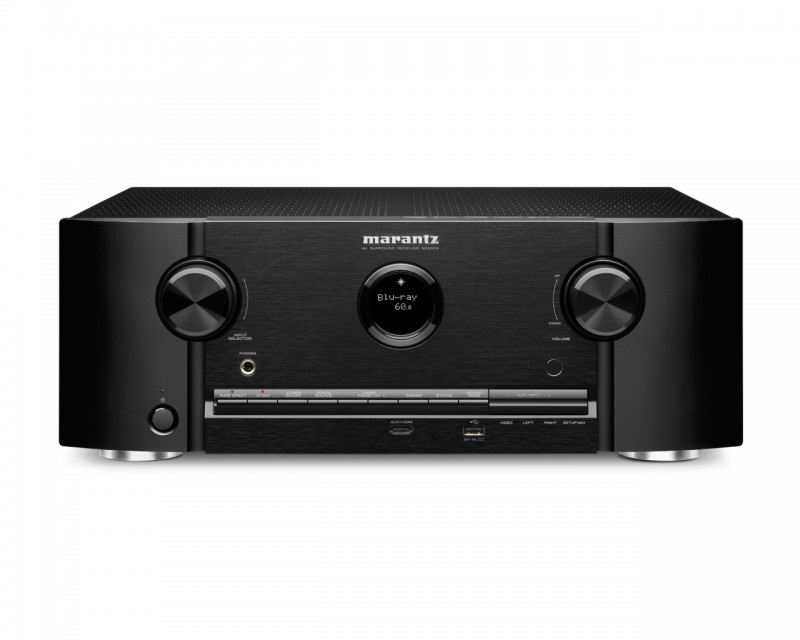

Marantz SR5009 AV Receiver (1 only)

These technologies guarantee both power and detail in your surround sound experience. Bluetooth and Wi-Fi are built-in so you can enjoy your digital files wherever they are stored. In addition, it provides networking DLNA 1.5 facilities for DSD & AIFF and Gapless HD audio streaming, Internet radio, Spotify Connect and AirPlay. It includes decoders for standard audio as well as for Dolby TrueHD and DTS-HD Master Audio. The SR5009 comes with no less than 8 HDMI inputs of which one is on the front, and 2 outputs ? making it immediately ready for 3D and even 4K 60p Ultra HD resolution supporting 4:4:4 Pure Colour. It easily handles the most demanding of scenes in action films, as well as offering excellent-quality music playback - thanks to the latest Marantz audio technologies and 200W from the 7 amplifiers. Everything sounds clear, detailed, and alive with this set. As with many of this year's models the SR5009 includes a smart ECO mode. To finish off, the SR5009 comes with a whole range of convenience features such as: Setup Assistant, auto calibration with Audyssey MultiEQ XT and Dynamic Volume Control; four Smart Select buttons, Multi-Room with multi-source flexibility; and ?video-off" mode to ensure that you enjoy your music in true dynamic Marantz style. It also has the specially developed Marantz Remote App for smartphone and tablet. All of which makes the SR5009 a true combination of style, power and ease.

Main Features

• Wi-Fi and Bluetooth built-in
• Dolby TrueHD and DTS HD Master Audio
• 7ch discrete power amplifier, 200 W per channel
• Current Feedback circuitry with Marantz HDAM
• Audyssey MultEQ XT room calibration
• Latest HDMI version with 4K 60p 4:4:4 Pure Colour
• 7+1 HDMI in / 2 out (4K 60p, 4:4:4, 3D, ARC, Deep Colour)
• HDMI scaling 1080p, 4K 24/25/30p
• HD Audio streaming: DSD (2.8MHz), ALAC 96/24, FLAC 192/24
• Gapless Playback : DSD (2.8MHz), ALAC, FLAC, AIFF, WAV
• Spotify Connect*, Internet Radio support
• Setup Assistant and advanced GUI
• Marantz Remote App for iOS and Android devices
• ECO mode

FEATURES SR5009

MULTICHANNEL SURROUND

DTS HD Master / DTS 5.1 / DTS ES / DTS 96/24 ? / ? / ? / ?

Dolby Digital Plus / Dolby TrueHD / Dolby Digital EX / DPL IIz ? / ? / ? / ?

Multichannel Stereo ?

Compressed audio Enhancer: MDAX2 ?

NETWORK

DLNA Certified ? (v1.5)

Lossy formats MP3 / WMA / AAC ? / ? / ?

Lossless formats FLAC / ALAC / WAV ? / ? / ?

DSD Streaming ? (2.8 MHz)

FLAC HD 192/24 ?

WAV 192/24 ?

ALAC 96/24 ?

Gapless playback ? (FLAC, WAV, ALAC)

Photo streaming (JPEG) ?

AirPlay audio streaming ?

Windows PlayTo / Windows 8/RT compatible ? / ?

Internet Radio (vTuner) ?

Spotify Connect * ?

Compatible with Remote APP for Smart Phones Android/iOS

Ethernet / Wi-Fi ? / ? (dual antenna)

OTHERS

FM / AM Tuner ? / ?

Current Feedback Topology ?

Hyper Dynamic Amplifier Modules (HDAM) ?

High grade audio components ?

Bluetooth ?

Auto speaker setup by microphone Audyssey Mult EQ XT

Audyssey Dynamic EQ / Dynamic Volume ? / ?

Video conversion CVBS > HDMI; Comp > HDMI

Videoprocessing >1080p, 4k 24/25/30Hz

ISF Certification ?

HDMI path though on stand-by ?

3D video pass-through ?

Audio Return Channel ?

On Screen Display: Advanced GUI ?

GUI overlay on HDMI ?

Setup Assistant (English, German, French, Spanish,

Italian, Dutch, Swedish, Polish, Russian)

Smart Select 4 presets

Variable cross over ?

Multiroom zones 2

Optimized Bass Redirection ? * This feature is not available in all countries.

|V01|

INPUTS/OUTPUTS

VIDEO

Composite In / Out 2+1 / 1

Component In / Out 2 / 1

HDMI In / Out 7+1 / 2 (4k 60Hz, 4:4:4 bypass)

AUDIO

Analogue In / Out 4+1 / 0

Digital Optical In 2

Digital Coaxial In 2

Multichannel Pre Out ? (7.2)

Subwoofer Out 2

Zone audio preout ?

7.1 multichannel input ?

OTHER

Speaker A / B ?

Height speaker terninal Speaker B or Heigth

Bi-amp drive (5.1 ch setting) ?

Multi-Room Speaker Terminal Surround Back assignable

RS232 control ?

IR Flasher In ?

DC Trigger output ?

Marantz remote bus ?

Network: (IP-control / update) ? / ?

Front Inputs: HDMI / USB ? / ?

USB Audio / Made for iPod / Made for iPhone ? / ? / ?

SPECIFICATIONS

Number of poweramps 7

Power Output per channel

6 ohm, 1 kHz, 1%, 1ch Drive 180 W

6 ohm, 1 kHz. 0.7%, 2ch Drive 140 W

8 ohm, 20 Hz - 20 kHz, 0.08%, 2ch Drive 100 W

Audio Signal to Noise Ratio 98 dB

GENERAL

Available colours: Black

System Remote Control RC024SR

Power Consumption in W 650

Power Consumption No-Sound (ECO ...on/off) in W 45 / 75

Standby Consumption in W 0.2 (with CEC 0.5)

Maximum Dimensions (W x D x H) in mm 440 x 346 x 161

Weight in kg 10.3
