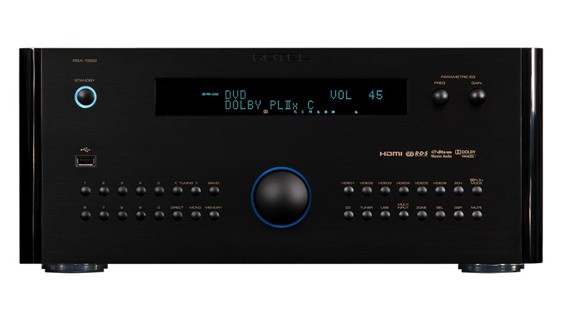

Rotel RSX-1562 Surround Receiver
Rotel RSX-1562: 7 x 100 watt per channel Home Theatre Receiver (More information)
- Availability:
- Discontinued
- Categories:
- Home Cinema
- Sub-categories:
- AV Receivers
- Brand:
- Rotel
- Delivery:
- FREE Delivery Australia Wide
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$2,999
(each)
FREE Delivery Australia Wide
This product is currently unavailable to order.
Related Products (View more related products)
-
SALE ENDS 2nd Jul at 3:00pm
Marantz CINEMA60: 7.2 Channel Premium AV Receiver
..a high-performance 7.2 channel AV receiver with 100 watts per channel, Dolby Atmos, DTS:X, and HEOS Built-In streaming, CINEMA 60 is the new standard of foundational luxury home theater.$2,000(per each)Was $2,500Save $500. -
SALE ENDS 2nd Jul at 12:06pm
Marantz CINEMA70: 7.2 Channel Premium AV Receiver
CINEMA 70s features a highly compact slimline design, making theaters possible in spaces where equipment cannot occupy large amounts of space. CINEMA 70s comes replete with the latest immersive audio formats and an all-new HD graphical user interface... read more$1,440Was $1,800Save $360. -
SALE ENDS 2nd Jul at 10:57am
Denon: AVR-X2800H - 7.2 Channel AV Amplifier
Enjoy incredible 8K video and immersive 3D audio from the AVR-X2800H. Fill medium-size rooms with more refined sound from a 7.2 or 5.2.2 set up with Dolby Atmos and DTS:X. And with HEOS Built-in, wirelessly stream online music and share with HEOS-enabled... read more$1,359(per each)Was $1,699Save $340. -
SALE ENDS 2nd Jul at 10:58am
Denon: AVC-X3800 - 9.4 Channel AV Amplifier
With nine channels of amplification, up to four independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X3800H envelops larger living spaces in theater-quality sound. Enjoy amazing 8K video quality and with HEOS Built-in,... read more$1,999(per each)Was $2,499Save $500.
Product Categories
Product Details

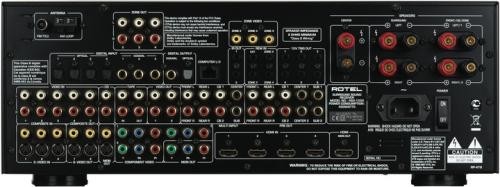

The RSX-1562 builds upon the excellence established by its highly acclaimed predecessor, the RSX-1560, but with the addition of new, improved circuitry and technologies such as HDMI® 1.4 with 3D. In addition, the advent of so many video sources such as a cable or satellite box, DVRs, DVD players, and WiFi or Ethernet audio / video feeds from devices such as Apple TV® and Roku® etc., have necessitated adding more HDMI inputs. The RSX-1562 now has six HDMI 1.4 inputs and two HDMI 1.4 outputs, one with an Audio Return Channel (ARC). The ARC in HDMI 1.4 enables a TV via a single HDMI cable, to send audio data ?upstream" to an A/V receiver or surround audio controller, increasing user flexibility and eliminating the need for any separate S/PDIF audio connection.
| Model | RSX-1562 |
| Audio | - |
| Continuous Power (7 channels driven) | 100 watts/ch (20-20k Hz, |
| Continuous Amplifier Power | 200 watts (1 kHz, |
| Total Harmonic Distortioner | |
| Intermodulation Distortion (60Hz:7kHz) | |
| Signal to Noise Ratio (IHF A-weighted) | 95dB (analog bypass) 92dB (Dolby Digital, DTS) 0 dBFs |
| Input Sensitivity/ Impedance | Line Level: 200 mV/100k ohms |
| Preamp Output Level/ Output Impedance | 1.0V/1k ohms |
| Decodable Digital Input Signals | Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIz, DTS, DTS-ES, DTS 96/24, DTS-ES 96/24, LPCM (up to 192k). Lossless audio formats (using HDMI 1.3): Dolby TrueHD and DTS HD Master Audio |
| Decodable USB/iPod Digital Input Signals | AAC(m4a), WAV, MP3, WMA |
| Video | - |
| Input Resolution | 480i/576i, 480p/576p, 720p, 1080i 1080p, 1080p 24Hz, 3D (HDMI only) |
| Output Resolution | 480i/576i (Composite only), 480p/576p, 720p, 1080i, 1080p, 1080p 24Hz, 3D (HDMI only) |
| Signal to Noise Ratio | 45dB |
| Input Impedance | 75 ohms |
| Output Impedance | 75 ohms |
| Output Levelance | 1.0 volt |
| HMDI Inputs/Outputs | Version 1.3, supporting Deep Color passthrough and Broad Color Space passthrough. Version 1.4, supporting 3D passthrough and Audio Return Channel |
| FM Tuner | - |
| Usable Sensitivity | 14.2dBf |
| Signal to Noise Ratio (at 65dBf) | 70dB |
| Harmonic Distortion (at 65dBf) | 0.03% |
| Stereo Separation (1 kHz)5dBf) | 45dB |
| Output level | 1V |
| Antenna Input (unbalanced) | 75 ohms |
| AM Tuner | - |
| Sensitivity | 50microV/m |
| Signal to Noise Ratio | 40dB |
| Output Level | 500 mV |
| Antenna Input | Loop Antenna |
| General | - |
| Power Consumption | 500 watts 0.5 watt (standby) |
| Power Requirements (AC) | 120 volts, 60Hz (USA version) 230 volts, 50Hz (EC version) |
| Weight | 15.5kg/34.17 lbs |
| Dimension (W x H x D) | 431 x 188 x 422 mm 17 x 71/2 x 165/8 in |
| Front Panel Height (feet removed for rack mount) | 4U/176.8mm/7 |
