RPG Skyline 7 Inch Diffuser
BOX of 2. (Panel size: 600ml x 600ml) The Skyline is designed to uniformly scatter sound arriving from any direction, creating a sense of ?passive? surround sound, immersion, and envelopment in the sound field. Panel size: 600ml x 600ml (More information)
- Availability:
- Discontinued
- Categories:
- Home Cinema
- Sub-categories:
- Acoustic Panels
- Brand:
- Delivery:
- Courier Delivery $35 (Australia wide)
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$605
(per pair)
$35 Delivery Australia wide
RPG SKYLINE 7?, EPS WHITE, BOX OF 2
This product is currently unavailable to order.
Related Products (View more related products)
-
Artnovion - Douro Diffuser - Acoustic Treatment Panel
Sold in packs of 4 Panels, Douro is a geometric diffuser, designed to scatter and diffuse mid-high frequencies. The solid construction of the unit limits the energy lost to absorption, helping create a balanced, homogenous sound field.$1,799 -
Artnovion - FixArt Tube - Acoustic Panel Mounting System
Artnovion Fixart range brings versatile solutions for panel mounting. FixArt Tube is a innovative system for acoustic panels. Easy to install, easy to align with an installation template included with every kit.$299 -
Artnovion - Cinema Series - Acoustic Treatment Panel - Valley Cover Panel
Sold as a set of 4 Cover Panels with numerous colour choices, Artnovion Valley Cinema Series Cover Panels provide a beautiful finish to the Cinema Series Absorber, Diffuser, Bass Trap and Speaker CS Panel Cores (sold separately).$899(per box) -
Artnovion: Siena Absorber - Acoustic Treatment Panel
Sold as a carton of 6 panels - the Siena Absorber is made using timber from renewable sources, the Siena Absorber is a premium acoustic panel with an absorption treatment range between 250 Hz and 5000 Hz.$1,799(per box)
Product Categories
Product Details

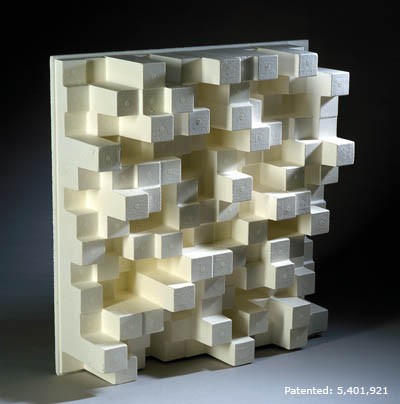

RPG Skyline 7" 2D Primitive Root Diffuser
Interfering reflections can be controlled by absorption or diffusion. In small rooms, it is often desirable to control interfering reflections and provide an ambient sound field using diffusion instead of absorption. When the room’s surfaces are relatively close to the listener, a very efficient diffusing surface is needed. To solve this problem, RPG® patented the Skyline. It is the industry’s first — and most efficient — omnidirectional primitive root number theory two dimensional diffusor. The Skyline scatters incident sound uniformly so that the acoustic glare in all directions is minimized.
Small rooms like Project Studios need a very efficient surface to diffuse interfering rear wall reflections and provide a diffuse sound field.
Solution
To solve this problem, RPG utilized advanced primitive root number theory to design the most powerful and aesthetic two dimensional omnidirectional diffusing surface in the acoustical industry.
Diffusion
The uniformity of diffusion is characterized by the standard deviation of the 1/3 octave polar response, for a given angle of incidence. For each of the 37 angles of incidence, 37 backscattering impulse response measurements are made at 5° increments between 0° and 180°. The Diffusion Coefficient is the mean standard deviation for all angles of incidence, normalized to the standard deviation of a delta function (1 equals ideal diffusion). The data illustrate the exceptional uniformity of diffusion above the diffraction limit (565 Hz = 1130 ft/sec/2'), which is related to the 2' dimension of the panel. The Diffusion Coefficient of a flat reflective panel is shown for comparison.
WARNING:
The Skyline is fabricated from flame- retardant, high- density expanded polystyrene foam. It is the nature of this material to have rough surface imperfections and contain steam vent holes.
